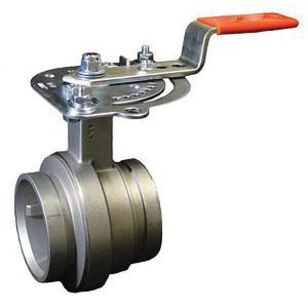

VIC V060861XP2 6IN 861 VIC 300 SS BUTTERFLY VALVE LEVER HANDLE FOR POTABLE WATER
VIC V060861XP2 6IN 861 VIC 300 SS BUTTERFLY VALVE LEVER HANDLE FOR POTABLE WATER
861 Series Butterfly Valve, 6 in, Grooved, Stainless Steel, 300 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,395.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialStainless Steel
Connection TypeGrooved
Dimensions6-5/8 " OD x 14.63 " L
Disc MaterialStainless Steel
Flow Coefficient (Cv)1800
Inlet to Outlet Length5.88
Material StandardASTM A351-CF8M, ASTM A564
MediaWater
Mounting TypeFlanged
Nominal Size6
Number of Positions10
Operator TypeLever Handle
Pressure Rating300
Seal MaterialFluoroelastomer
Seat MaterialFluoroelastomer
Series861 Series
Stem MaterialStainless Steel
Temperature Rating20 to 180
Top to Inlet Center8.38
Additional Information
ANSI/NSF 61, 372 Certified|CE Marked|cULus Listed|MSS SP-67 Compliant|UL Listed|UPC Certified
Features & Benefits
- Utilizes grade P gasket material for improved resistance to typical potable water disinfectants Designed for bi-directional, dead end services to full working pressure Intended for use in potable water systems where full stainless steel wetted construction is required Disc shall be connected to the stem without the use of fasteners or pins and be offset from the disc centerline to provide a full 360 deg continuous contact with the seating surface when closed Seat shall be pressure responsive Valve shall have standard ISO flange-mounting for ease of actuation
