ASME A112.18.1|ASSE 1010|ASTM E814|California No-Lead Plumbing Law|CAN/ULC S115|cETLus 5006619|cUPC Certified|IAPMO Listed|NSF 61/372|SCMC/PF 60-01/120-1|UL 1479|Warnock Hersey Listed

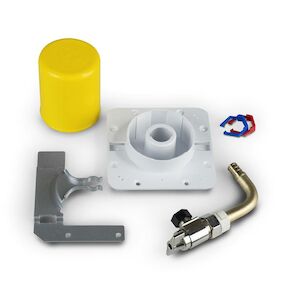

• Installs at rough incorporates valve, escutcheon, stub out and bracket in one product Quarter-turn ball valve with 3/8 in OD compression connection Patented, replaceable valve design

Sioux Chief 699R Series ProPlate™ fire-rated single valve outlet plate shall be used where necessary in plumbing systems for accessible mounting of water supply. Corrosion-proof plate can secure directly to vertical stud or between studs. Install bracketing through integral track or affix plate through flange holes. Supply line can be installed from above or below. Plate shall be supplied with plated, quarter-turn supply valve, having 1/4 in and 3/8 in compression connection or 3/4 in male hose connection. Valve shall be replaceable with any common 5/8 in compression valve. Outlet connections should generally be provided with a test/tamper-resistant cap. Plate allows debris cover to thread in for protection during rough-in.
