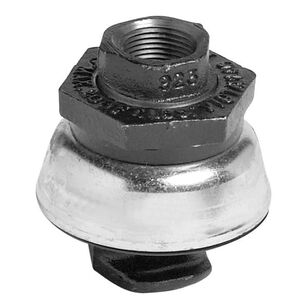

VIC CD19923PE0 4-8X1/2 OTLT 923 E BLK FEM VIC-LET OUTLET
VIC CD19923PE0 4-8X1/2 OTLT 923 E BLK FEM VIC-LET OUTLET
Victaulic® Strapless Outlet, 923 Series, Outlet Fitting, 4 to 8 x 1/2 in Outlet Branch, FNPT Branch Connection, Iron, Material Construction: Iron, Finish: Black Painted, 300 psi, 0.84 in OD x 3.09 in W x 3 in D, -30 to 230 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$538.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Branch Connection TypeFNPT
Dimensions0.84 " OD x 3.09 " W x 3 " D
FinishBlack Painted
Fitting TypeOutlet
MaterialIron
Material ConstructionIron
Outlet Branch Size4 to 8 x 1/2
Pressure Rating300
Series923 Series
Temperature Rating-30 to 230
Additional Information
ASTM A536 Grade 65-45-12|cULus Listed
Features & Benefits
- Provides fast, easy pipe outlet without the need for a strap or lower housing to wrap around the pipe Main body casting has an internal lug which inserts into a hole cut in the pipe and grips against the pipe inside wall Tightened nut on the main body forces the gasket and containing collar against the pipes outside surface, creating a rigid joint Pickled and oiled steel, hot rolled collar Brass bushing
VIC CD19923PE0 4-8X1/2 OTLT 923 E BLK FEM VIC-LET OUTLET
BrandVictaulic®
MFG #CD19923PE0
Keller #116794
