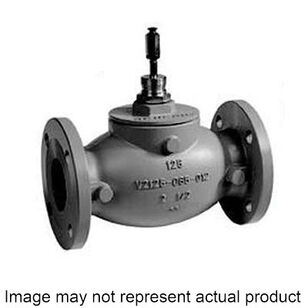

resideo VGF Series VGF21ES25 Globe Valve, 2-1/2 in, Flanged, 175 psi, Iron
resideo VGF Series VGF21ES25 Globe Valve, 2-1/2 in, Flanged, 175 psi, Iron
resideo Globe Valve, VGF Series, 2-1/2 in Nominal, Connection Type: Flanged, Number of Ways/Position: 2-Way, 175 psi, 70 Cv Flow Coefficient (Cv), Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, Stainless Steel Disc, Stainless Steel Seat, Iron, Material Standard: ASTM A126 Class B, Direct Acting Actuator, Chilled or Hot Water, Steam Service, 35 to 130 deg F, 10-7/8 in L x 7 in W x 9-3/8 in D, Additional Information: Class 125, 1-3/8 in Bonnet Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,471.37 / ea
Out of Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
Brandresideo
Actuation TypeElectric/Pneumatic
Actuator TypeDirect Acting
Additional InformationClass 125, 1-3/8 " Bonnet Size
Body MaterialASTM A126 Class B Cast Iron
Connection TypeFlanged
Dimensions10-7/8 " L x 7 " W x 9-3/8 " D
Disc MaterialStainless Steel
End ConnectionFlanged x Flanged
End to End Distance10-7/8 "
Flow Coefficient (Cv)70
IndustryHVAC
MaterialIron
Material StandardASTM A126 Class B
Nominal Size2-1/2
Number of Ways/Position2-Way
Packing MaterialPTFE
Pressure Rating175
Seat MaterialStainless Steel
SeriesVGF Series
Service TypeChilled or Hot Water, Steam
SpecificationsNominal Size: 2-1/2 " x 2-1/2 "
Stem MaterialStainless Steel
Temperature Rating35 to 130
Trim MaterialStainless Steel
TypeGlobe, 2-Way
Features & Benefits
- ANSI Class 125 cast iron bodies with flanged end connections Equal percentage and linear flow characteristics Face-to-face flange dimensions per ANSI/ISA S75.03 standard Sizes from 2-1/2 to 6 in Stainless steel trim standard for long life span Differential pressure of 175 psi, ANSI Class IV leakage Steam inlet pressure up to 125 psig and 353 F maximum temperature Self-adjusting packing Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol™ Motors and MN/MS Series direct coupled actuators Not suitable for combustible gasses
Marketing Information
VGF Flanged Globe Valves are used for 2-position or modulating control and can be operated by ML6984/7984, ML6420/6425, ML6421/7421 Actuators, MP953 Pneumatic Actuators, Modutrol™ Motors with Q5001 valve linkage, or MN/MS Direct Coupled Actuators.
