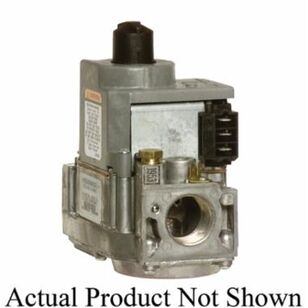

Honeywell VR8345 Series VR8345K4809/U Combination Gas Control Valve, 1/2 in, 1/2 psi
Honeywell VR8345 Series VR8345K4809/U Combination Gas Control Valve, 1/2 in, 1/2 psi
Honeywell Combination Gas Control Valve, VR8345 Series, 1/2 in Nominal, 1/2 psi Pressure, 1 Stage, Direct Spark, Hot Surface, Intermittent Pilot Ignition, Electrical Connection: 1/4 in Quick-Connect Male Terminal, 24 VAC at 50/60 Hz, 30000 to 415000 Btu/hr Natural Gas, 300000 Btu/hr at 1 in-WC Pressure Drop Nominal, LP Gas, Natural Gas Fuel, NPT with Plug Pressure Tap, Compression Tube Pilot Hose Connection, -40 to 175 deg F, Dimensions: 5-3/8 in H x 4-1/16 in W x 2-11/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$503.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Dimensions5-3/8 " H x 4-1/16 " W x 2-11/16 " D
Electrical Connection1/4 " Quick-Connect Male Terminal
Fuel TypeLP Gas, Natural Gas
Hose Connection TypeNPT with Plug Pressure Tap, Compression Tube Pilot
Ignition TypeDirect Spark, Hot Surface, Intermittent Pilot
Nominal Capacity30000 to 415000 Btu/hr Natural Gas, 300000 Btu/hr at 1 "-WC Pressure Drop
Nominal Size1/2
Number of Stages1
Pressure Rating1/2
SeriesVR8345 Series
Temperature Rating-40 to 175
Voltage Rating24 VAC at 50/60 Hz
Shipping Dimensions (L x W x H)212" x 184" x 250"
Additional Information
UL MCCZ2.MH5323|CSA 112395
Features & Benefits
- Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter Replaces many IP, HSI or DSI gas control Includes converter kit to adapt from natural to LP gas All adjustments and wiring connections are accessible from top of control 4 in swing radius allows easy rotation into position inside the tightest furnace vestibules Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper Internal inlet screen blocks contaminants in gas line from entering valve 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting Compact size Straight through body pattern
Marketing Information
Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 V, gas fired appliances, with capacities from 20 to 200 cfh (VR8245M) or 30 to 415 cfh (VR8345M).
Honeywell VR8345 Series VR8345K4809/U Combination Gas Control Valve, 1/2 in, 1/2 psi
BrandHoneywell
MFG #VR8345K4809/U
Keller #1172158
