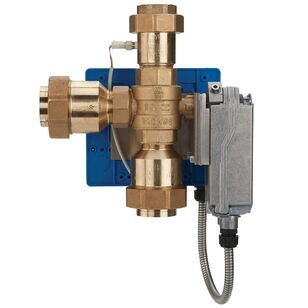

POWERS™ IntelliStation Jr. Series LFIS100VL Digital Mixing Valve, 1 x 1 1/4 in Nominal, FNPT, 55 gpm, 200 psi, 200 deg F
POWERS™ IntelliStation Jr. Series LFIS100VL Digital Mixing Valve, 1 x 1 1/4 in Nominal, FNPT, 55 gpm, 200 psi, 200 deg F
POWERS™ Digital Mixing Valve, IntelliStation Jr. Series, 1 x 1 1/4 in Nominal, FNPT Connection, 200 psi, 55 gpm Flow Rate, Water Media, 115 230 VAC, 0.55 A, 20 VA, 50/60 Hz, Cast Brass Body, 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,912.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPOWERS™
Amperage Rating0.55
Body MaterialCast Brass
Connection TypeFNPT
Flow Rate55
Frequency Rating50/60
IndustryPlumbing
MediaWater
Nominal Size1 x 1-1/4
Power Rating20
Pressure Rating200
Prop 65 WarningYes
SeriesIntelliStation Jr. Series
Temperature Rating200
Voltage Rating115-230
Additional Information
ASSE 1017|cUPC Listed|ANSI/NSF/CAN 61G|Buy American Act Compliant|CSA 24/UL873|Bacnet Testing Laboratorie|CE Certified
Features & Benefits
- Programmable schedule for temperature setback saves energy Connects to the WATTS® OnSite mobile and web app for remote hot water visibility and control Multi-channel alerts prioritized by safety and potential liability High temperature sanitization mode to address waterborne bacteria
Documents
Marketing Information
The 1 in IntelliStation Jr. with IoT capabilities is a digital mixing valve that allows users to remotely control and monitor tempered water distribution. Achieve safety at a glance with remote visibility on the WATTS® OnSite mobile and web app. Select your desired outlet water temperature on the controller with its full color touchscreen display, or from the app. Configurable on site and easy to install, IntelliStation Jr. doesn't require factory pre programming, a laptop, or special software when commissioning or making adjustments. It controls the outlet temperature to +/ 2 deg F of set point in compliance with ASSE 1017. Connectivity to the BAS is standard in both BACnet and Modbus protocols. Temperature setback feature contributes to energy efficiency and savings. The valve also features a high temperature sanitization mode to help mitigate the risk of waterborne bacteria as part of a user directed and controlled thermal eradication protocol.
POWERS™ IntelliStation Jr. Series LFIS100VL Digital Mixing Valve, 1 x 1 1/4 in Nominal, FNPT, 55 gpm, 200 psi, 200 deg F
BrandPOWERS™
MFG #6551601
Keller #1172980
