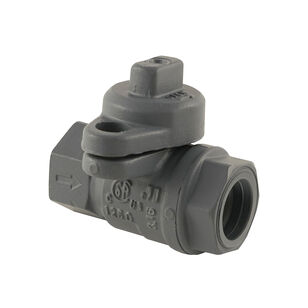

Jomar Valve® 175-LWN Series 240-003P Utility Gas Ball Valve, 1/2 in, Brass, 175 psig

Name: Jomar Valve® 175-LWN Series 240-003P Utility Gas Ball Valve, 1/2 in, Brass, 175 psig
Brand: Jomar Valve®
SKU: 1173221
Price: 50.28 USD
Availability: OutOfStock

Jomar Valve®

Jomar Valve® 175-LWN Series 240-003P Utility Gas Ball Valve, 1/2 in, Brass, 175 psig

MFG #240-003P

Item #1173221

Mfr. Part #240-003P

UPC #662527294777

Jomar Valve® Utility Gas Ball Valve, 175-LWN Series, 1/2 in Nominal, Full Port, 175 psig, Gas Media, 0.59 in Orifice, 2.74 in Inlet to Outlet Length, 1.87 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Buna-N Packing, Brass Handle, Buna-N/FKM/PTFE Softgoods, Finish: Painted, -40 to 300 deg F, 2.74 in L, Domestic/Import: Domestic, Additional Information: Locking Wing Handle Operator, ANSI B16.33 Material Standard, Brass Ball Material

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$50.28 / ea

Out of Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandJomar Valve®

Additional InformationLocking Wing Handle Operator, ANSI B16.33 Material Standard, Brass Ball Material

Body MaterialBrass

Color/FinishPainted

Dimensions2.74 " L

Domestic/ImportDomestic

FinishPainted

Handle MaterialBrass

IndustryPlumbing

Inlet to Outlet Length2.74

MediaGas

Nominal Size1/2

Orifice Size0.59

Packing MaterialBuna-N

Port TypeFull

Pressure Rating175

Seat MaterialPTFE

Series175-LWN Series

Softgoods MaterialBuna-N/FKM/PTFE

Stem MaterialBrass

Temperature Rating-40 to 300

Top to Inlet Center1.87

Trim MaterialBrass/PTFE
