Dielectric Union
Dielectric Union

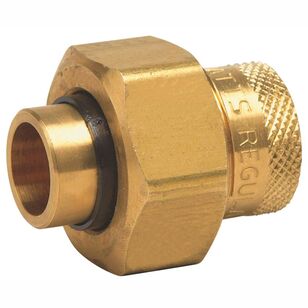

1/2 In Lead Free Dielectric Union, Female Brass Pipe Thread To Female Solder Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$98.50Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
IndustryPlumbing
Shipping Dimensions (L x W x H)1.438" x 1.44" x 1.82"
Features & Benefits
- Buna-N gasket Maximum pressure is 250 psi (17.2 bar) Maximum temperature 180 degrees F (82 degrees C) Female brass pipe thread to female solder connections
Marketing Information
This 1/2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female brass pipe thread to female solder connections, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).
Dielectric Union
BrandWATTS®
MFG #0009880
Keller #1174619
