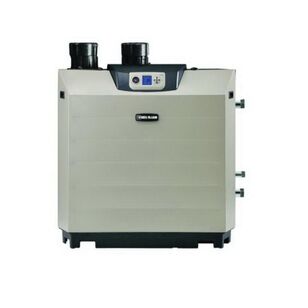

Weil-McLain® SlimFit Series SF750 383-600-331 Gas Fired Water Boiler, 93.6% Thermal, 94% Combustion AFUE, Cast Aluminum
Weil-McLain® SlimFit Series SF750 383-600-331 Gas Fired Water Boiler, 93.6% Thermal, 94% Combustion AFUE, Cast Aluminum
Weil-McLain® Gas Fired Water Boiler, SlimFit Series, Model: SF750, 93.6% Thermal, 94% Combustion AFUE, 150 to 750 MBtu/hr Input, 702 MBtu/hr Gross BTU, 1-1/4 in MNPT Gas, 2 in MNPT Supply/Return Connection, Natural Gas Fuel, Direct Exhaust Vent, Chimney/Breeching/Vent Size: 6 or 8 in Dia x 30 or 100 ft L, Spark Ignition, Net BTU Rating: 610 MBtu/hr, Cast Aluminum, Dimensions: 49-3/8 in H x 50-1/4 in W x 18-3/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$23,122.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWeil-McLain®
AFUE Rating93.6% Thermal, 94% Combustion
BTU Rating150 to 750 MBtu/hr Input, 702 MBtu/hr Gross
Chimney/Breeching/Vent Size6 or 8 " Dia x 30 or 100 ' L
Connection Type1-1/4 " MNPT Gas, 2 " MNPT Supply/Return
Dimensions49-3/8 " H x 50-1/4 " W x 18-3/16 " D
Fuel TypeNatural Gas
Ignition TypeSpark
MaterialCast Aluminum
ModelSF750
Net BTU Rating610
SeriesSlimFit Series
Vent TypeDirect Exhaust
Additional Information
AHRI Certified, ASME CSD-1, CSA Certified, DOE Certified
Features & Benefits
- Modulating burner with 5:1 turndown ratio Fast and easy out of the box installation Lightweight, compact design requires PVC, CPVC, PP or SS (AL29-4C) materials approved for direct vent and direct exhaust Features an exceptionally small footprint Can be installed back-to-back Narrow design allows unit to maneuver into existing spaces Fully factory-assembled and -tested for quick, on-site installation 3-1/2 in LCD screen Intuitive, color-coded display Express set up or fully customizable options Modbus standard, BACnet optional Preset typical heating systems 0 - 10 VDC analog output signal to modulate a lag boiler in a hybrid boiler system Up to eight boiler cascading and lead/lag rotation Multiple boiler operation with up to 24 circulators ZoneStacking - zone and priority options for up to 24 programmable zones Smart sequencing Alarms and advanced diagnostics High limit and modulating temperature control
