ICC-ES-PMG Approved

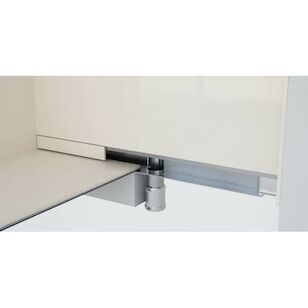

• WallDrain72 accommodates rough openings measuring anywhere between 26 and 72 in (wallboard to wallboard), with tile-in covers and drain extensions that can be trimmed to size to achieve wall-to-wall coverage Requires 2 in drain outlet with a capacity of 12 gpm (the actual volume is limited by the plumbing lines and P-trap) Side waste outlet also available for rear (horizontal) discharge WallDrain linear shower drain body gets concealed into the wall for a sleek look The ultimate in shower luxury with endless shower design possibilities All-in-one assembly kit has everything needed for placing the drain in a curbed or curbless shower Includes linear drain body with centered vertical waste outlet, tile-in cover, PET vertical installation panel and furring strips; drain extensions, two-band coupling to connect to the DWV system, reinforcing fabric and corners for liquid waterproofing applications (liquid waterproofing not included) Wall-to-wall coverage promotes effective drainage, eliminates need for centered drain outlet and ensures a visually pleasing installation Drain body made of 18 ga, 316L marine-grade stainless steel PET components are made of 100% recycled plastic, minimizing their environmental footprint and helping projects qualify for LEED points Waterproof with liquid waterproofing or hot mop using a cast iron or ABS drain, sold separately

QuickDrain WallDrain linear shower drains are built into the wall, offering a totally concealed and sleek look. The all-in-one assembly kit includes everything needed to place the drain in a curbed or curbless shower, while also providing exceptional flexibility and customization. WallDrain offers the ultimate in shower luxury and design innovation for residential and hospitality applications. Elevate your shower design with QuickDrain.
