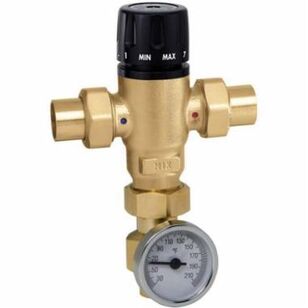

Caleffi 521 Series 521519A Mixing Valve With Temperature Gauge, 3/4 in, Sweat, 1.3 to 15 gpm
MFG #521519A
Item #1181217
Mfr. Part #521519A
UPC #8016615241174
Caleffi Mixing Valve With Temperature Gauge, 521 Series, 3/4 in Nominal, Sweat Connection, Number of Ports/Ways: 3-Ways, 1.3 to 15 gpm Flow Rate, 200 lbf/sq-in, 3 Cv Flow Coefficient (Cv), EPDM Seal, Brass, +/-6 deg F Gauge Accuracy, Water Service, 2 in Gauge Dial, 30 to 210 deg F Gauge Scale, Lead-Free, 200 deg F Maximum, 39 to 80 deg F Cold Water, 200 deg F Hot Water Inlet, 85 to 150 deg F Adjustable, 5 in L x 7-13/16 in H, Domestic/Import: Import
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$300.00Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandCaleffi
Connection TypeSweat
Dimensions5 " L x 7-13/16 " H
Domestic/ImportImport
Flow Coefficient (Cv)3
Flow Rate1.3 to 15
Gauge Accuracy+/-6
Gauge Dial Size2
Gauge Scale30 to 210
MaterialBrass
Nominal Size3/4
Number of Ports/Ways3-Ways
Pressure Rating200
Seal MaterialEPDM
Series521 Series
Service TypeWater
Temperature Rating200 deg F Maximum, 39 to 80 deg F Cold Water, 200 deg F Hot Water Inlet, 85 to 150 deg F Adjustable
Additional Information
ANSI/NSF 372-2011|ASSE 1017|CSA B125.3|UPC Certified|IPC Low-Lead Laws and Listed by ICC-ES
Features & Benefits
Maintain the temperature of the mixed water supplied to the user at a constant set value when there are variations in the supply pressure and temperature of the incoming hot and cold water or in the flow rate
Locking set point knob
Maximum inlet pressure ratio 2:1
+/- 3 deg F temperature stability
Maximum recommended differential pressure 20 psi
0.25% maximum weighted average low-lead content
Minimum temperature difference between hot water inlet and mixed water outlet should be 27 deg F
Stainless steel spring, peroxide cured EPDM seal, shutter, seats and sliding guides - PPP
