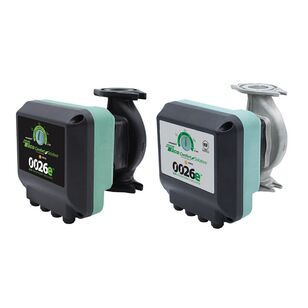

Taco Comfort Solutions® 0026e-SF2 High-Efficiency Circulator Pump, 44 gpm, 10 to 125 W, 115/208/230 VAC, 1/0.5 A
Taco Comfort Solutions® 0026e-SF2 High-Efficiency Circulator Pump, 44 gpm, 10 to 125 W, 115/208/230 VAC, 1/0.5 A
Taco Comfort Solutions® High-Efficiency Circulator Pump, 44 gpm Flow Rate, 26 ft Maximum Head, 10 to 125 W, 115/208/230 VAC, 1/0.5 A, 50/60 Hz, 150 psi Maximum Pressure, 830 to 3800 rpm Motor Speed Rating, 1/4 hp, 1 ph Phase, 230 deg F, Carbon Thrust, Ceramic Bearing, Stainless Steel, Additional Information: ECM, Permanent Magnet Motor, Composite Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,527.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationECM, Permanent Magnet Motor, Composite Impeller Material
Amperage Rating1/0.5
Bearing TypeCarbon Thrust, Ceramic
Flow Rate44
Frequency Rating50/60
HP Rating1/4
IndustryPlumbing
MaterialStainless Steel
Maximum Head26
Maximum Pressure150
Motor Speed Rating830 to 3800
Phase1
Power Rating10 to 125
Temperature Rating230
Voltage Rating115/208/230
Additional Information
cETLus Listed|FCC Approved|NSF Certified
Features & Benefits
- Replaces all single-speed and three-speed circulators in its class Rotatable control cover to simplify installation BIO Barrier® protects the pump from system contaminants SureStart® automatic unblocking and air purging mod Use with a Taco ZVC zone valve control or SR switching relay for on/off operation Nut-grabber feature on flanges for easier fit-up Dual-electrical knock-outs and removable quick connect terminal strip for easy wiring Double insulated Whisper quiet operation
Documents
Marketing Information
The 0026e™ is a high performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With five easy settings, it's variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 three-speed and 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e™ reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.
Taco Comfort Solutions® 0026e-SF2 High-Efficiency Circulator Pump, 44 gpm, 10 to 125 W, 115/208/230 VAC, 1/0.5 A
BrandTaco Comfort Solutions®
MFG #0026E-SF2
Keller #1181830
