NIBCO S-585HP-LF-1IN LF BRZ VLV
NIBCO S-585HP-LF-1IN LF BRZ VLV

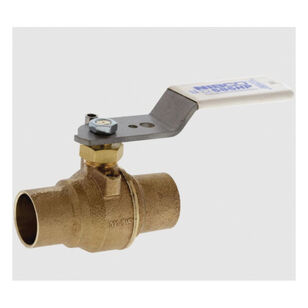

NIBCO® NIB-SEAL® Ball Valve, S-585HP-LF Series, 1 in Nominal, Solder Connection, Full Port, 1000 psi, Water Media, 1 in Orifice, 3.58 in Inlet to Outlet Length, 2.74 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B584 UNS C87500/A276 UNS S31600/A276 UNS S31600/B16 UNS C36000/B584 UNS C46500/UNS C69300, Silicon Bronze Alloy Body, PTFE Seat, Silicon Bronze Alloy Stem, PTFE Packing, Carbon Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 300 deg F, 6.55 in L x 3.78 in W x 2.08 in H, Domestic/Import: Domestic, Additional Information: 2-Piece
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$177.90 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Additional Information2-Piece
Ball MaterialBrass
Body MaterialSilicon Bronze Alloy
Connection TypeSolder
Dimensions6.55 " L x 3.78 " W x 2.08 " H
Domestic/ImportDomestic
Handle MaterialCarbon Steel
IndustryPlumbing
Inlet to Outlet Length3.58
Lead-FreeYes
Material StandardASTM B584 UNS C87500/A276 UNS S31600/A276 UNS S31600/B16 UNS C36000/B584 UNS C46500/UNS C69300
MediaWater
Nominal Size1
Operator TypeLever Handle
Orifice Size1
Packing MaterialPTFE
Port TypeFull
Pressure Rating1000
Seat MaterialPTFE
SeriesS-585HP-LF Series
Softgoods MaterialEPDM/PTFE
Stem MaterialSilicon Bronze Alloy
Temperature Rating300
Top to Inlet Center2.74
WarrantyLimited
Additional Information
ASME A112.4.14/CSA B125.14|c-ICC-ES-PMG Certified|c-ICC-ES-PMG Certified|cUPC Certified|IAPMO/ANSI Z1157|MSS SP-110|MSS SP-145|NSF/ANSI/CAN 372|NSF/ANSI/CAN 61
Features & Benefits
- Valve pressure rating 1000 psi/69 bar (1/2 to 1 in) and 800 psi/55 bar (1-1/4 to 2 in) non-shock cold working pressure Laser welded Reversible handle Easily adjustable pack nut Triple sealed stem Silicon Performance Bronze® body, ball and stem, optional stainless steel trim Blowout-proof stem design Reinforced PTFE seat rings Standard lever handle, optional NIB-SEAL®, locking lever, memory stop, extended lever
Documents
Marketing Information
The 585HP is on the cutting edge of manufacturing technology, ease of installation and highest quality standards. The classic ball valve has been completely rethought and redesigned to enhance the user experience and incorporate advances in assembly technology. NIBCO® has created the most advanced commercial ball valve on the market today. The valve is laser welded to create an incredibly strong joint between the body and body-end pieces, eliminating a potential leak path. The weld allows for an increased pressure rating of 1000 psi, up from the standard 600 psi.
NIBCO S-585HP-LF-1IN LF BRZ VLV
BrandNIBCO®
MFG #HP830XA
Keller #1185246
My Part ##
Last Ordered#
$177.90 / ea
