MIFAB®

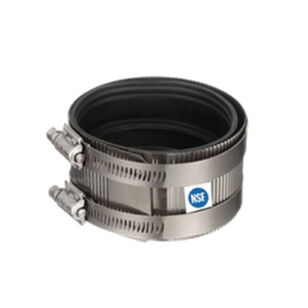

MIFAB® MI-QHUB-10 Coupling, 10 in, No-Hub, 6 psi, Stainless Steel
MIFAB®
MIFAB® MI-QHUB-10 Coupling, 10 in, No-Hub, 6 psi, Stainless Steel
MFG #MI-QHUB-10
Item #1188674
Mfr. Part #MI-QHUB-10
UPC #779897177552
MIFAB® Coupling, MI-QHUB Series, 10 in Fitting, Connection Type: No-Hub, 1500 psi Tensile Strength, 60 in-lb Torque, 6 psi, Material Standard: ASTM C564, C1277, CISPI 310, Stainless Steel, 4 in H, Additional Information: 5/16 in Hex Screw, 9/16 in Bandwidth, 4-Clamp
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$331.30 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMIFAB®
Additional Information5/16 " Hex Screw, 9/16 " Bandwidth, 4-Clamp
Connection TypeNo-Hub
Dimensions4 " H
Fitting Size10
IndustryPlumbing
MaterialStainless Steel
Material StandardASTM C564, C1277, CISPI 310
Pressure Rating6
Seriesmi-QHUB Series
Tensile Strength1500
Torque Rating60
Additional Information
CAN/ULC S102.2|CSA B70 247608|IAPMO Certified|NSF Certified|UPC Certified
Features & Benefits
- Regular-duty quick-hub coupling Used to provide a positive and significant seal between no-hub cast iron pipe and fittings The patented sealing rings within the quick-hub gasket ensure that the gasket remains within the shield during shipping and handling and also a quick push-on installation onto the pipe There is no need to remove the gasket first and roll it over the pipe With quick hub, you simply push the coupling onto the pipe
Marketing Information
MIFAB® Series MI-QHUB (specify size) no-hub couplings are manufactured with quick-hub gaskets made with neoprene and three sealing rings that meets the requirements of ASTM C564 housed inside a type 301 stainless steel corrugated shield. Two-(2 in through 4 in size), four (6 in through 10 in size) or six (12 in sizes) type 301 stainless steel clamps tightened with 5/16 in type 305 stainless steel hex head screws surround the shield to provide the sealing force. MI-QHUB Series couplings are tested and certified to the ASTM-C1277, CISPI 310, NSF, CSA B70 and CSA B602 (file no. 247608) standards and are listed with IAPMO. Also tested and certified by Intertek testing services to CAN/ULC S102.2 smoke test. Patented pipe clamp for joining all types of pipe.
MIFAB® MI-QHUB-10 Coupling, 10 in, No-Hub, 6 psi, Stainless Steel
BrandMIFAB®
MFG #MI-QHUB-10
Keller #1188674
