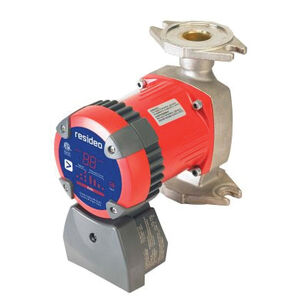

Honeywell Home AquaPUMP PCVF-ECM2020-LF/U Variable Speed Circulating Pump, 20 gpm, 5 to 45 W, 115 V, 0.05 to 0.72 A
Honeywell Home AquaPUMP PCVF-ECM2020-LF/U Variable Speed Circulating Pump, 20 gpm, 5 to 45 W, 115 V, 0.05 to 0.72 A
Honeywell Home AquaPUMP Variable Speed Circulating Pump, 20 gpm, 20 ft Maximum Head, 5 to 45 W, 115 V, 0.05 to 0.72 A, 60 Hz, 150 psi Maximum, 32 to 104 deg F, Stainless Steel, 7.08 in L, Additional Information: ECM Motor, 3-5/32 in Bolt Hole Spacing, 1/2 in Bolt Hole
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,267.79Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional InformationECM Motor, 3-5/32 " Bolt Hole Spacing, 1/2 " Bolt Hole
Amperage Rating0.05 to 0.72
Dimensions7.08 " L
Flow Rate20
Frequency Rating60
MaterialStainless Steel
Maximum Head20
Maximum Pressure150
Power Rating5 to 45
Temperature Rating32 to 104
Voltage Rating115
Additional Information
CSA C.22.2 File 108-01|ETL Listed|NSF/ANSI 61/372|UL 778
Features & Benefits
- Two-circulating pump options a cast iron pump for closed loop (hydronic) systems and a stainless steel pump for open loop (potable) systems Five different modes of operation provide versatility to cover the performance of a wide range of fixed and variable speed circulators Proportional and constant curve modes or auto based on Delta P Easy access to the terminal block for wiring
Documents
Marketing Information
Our AquaPUMP variable speed circulating pumps deliver greater efficiency for both variable and constant pressure applications with wet rotor, ECM motors. Plus, they make your life easier by being adaptable for all types of installs with proportional, constant curve and auto modes to meet your system needs.
Honeywell Home AquaPUMP PCVF-ECM2020-LF/U Variable Speed Circulating Pump, 20 gpm, 5 to 45 W, 115 V, 0.05 to 0.72 A
BrandHoneywell
MFG #PCVF-ECM2020-LF/U
Keller #1188821
My Part ##
Last Ordered#
$1,267.79Â /Â ea
