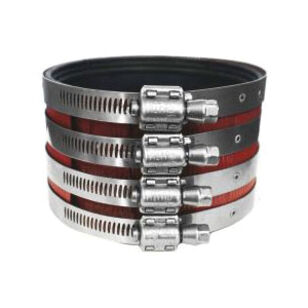

MIFAB® MI-QXHUB-3 Quick Hub Coupling, 3 in, No-Hub, 30 psi, Stainless Steel
MIFAB® MI-QXHUB-3 Quick Hub Coupling, 3 in, No-Hub, 30 psi, Stainless Steel
MIFAB® Quick Hub Coupling, MI-QXHUB Series, 3 in Fitting, Connection Type: No-Hub, 1500 psi Tensile Strength, 20 % Elongation, 80 to 100 in-lb Torque, 30 psi, Material Standard: ASTM C564, C1540-2018, Stainless Steel, 212 deg F, 3 in H, Additional Information: 4-Clamp, Heavy-Duty
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$36.15 / ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandMIFAB®
Additional Information4-Clamp, Heavy-Duty
Connection TypeNo-Hub
Dimensions3 " H
Elongation20
Fitting Size3
MaterialStainless Steel
Material StandardASTM C564, C1540-2018
Pressure Rating30
Seriesmi-QXHUB Series
Temperature Rating212
Tensile Strength1500
Torque Rating80 to 100
Additional Information
AISI Specified|ASTM D412/D573|CAN/ULC S102.2-10|CSA B602|cUPC Certified|FM 1680-1989|IAPMO Certified
Marketing Information
MIFAB® Series MI-QXHUB (specify size) heavy-duty shielded no-hub couplings are manufactured with gaskets made from neoprene (meets the requirements of ASTM C564) housed inside a 304 stainless steel corrugated shield. Four (2 to 4 in size), six (5 to 12 in size) 304 stainless steel clamps tightened with 3/8 in 305 stainless steel hex head screws surround the shield to provide the sealing force. MI-QXHUB Series couplings are tested and certified to the ASTM C1540-2018 and CSA B602 and listed with IAPMO. The MI-QXHUB Series are also tested and certified by intertek testing services to the CAN/ULC S102.2-10 smoke test. The MI-QXHUB Series are tested by IAPMO to comply to the FM 1680-1989 standard (except for markings).
MIFAB® MI-QXHUB-3 Quick Hub Coupling, 3 in, No-Hub, 30 psi, Stainless Steel
BrandMIFAB®
MFG #MI-QXHUB-3
Keller #1189769
