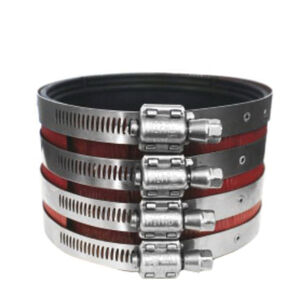

MIFAB® MI-QXHUB-6 Coupling, 6 in, No-Hub, 27 psi, Stainless Steel
MIFAB® MI-QXHUB-6 Coupling, 6 in, No-Hub, 27 psi, Stainless Steel
MIFAB® Coupling, MI-QXHUB Series, 6 in Fitting, Connection Type: No-Hub, 1500 psi Tensile Strength, 80 to 100 in-lb Torque, 27 psi, Material Standard: ASTM C564, C1540-2018, Stainless Steel, 4 in H, Additional Information: 3/8 in Hex Screw, 6-Clamp
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$104.24 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMIFAB®
Additional Information3/8 " Hex Screw, 6-Clamp
Connection TypeNo-Hub
Dimensions4 " H
Fitting Size6
MaterialStainless Steel
Material StandardASTM C564, C1540-2018
Pressure Rating27
Seriesmi-QXHUB Series
Tensile Strength1500
Torque Rating80 to 100
Additional Information
CAN/ULC S102.2-10|CSA B602|FM 1680-1989|IAPMO Certified|UPC Certified
Features & Benefits
- Heavy-duty quick-hub coupling Used to provide a positive and significant seal between no-hub cast iron pipe and fittings The patented sealing rings within the quick-hub gasket ensure that the gasket remains within the shield during shipping and handling and also a quick push-on installation onto the pipe There is no need to remove the gasket first and roll it over the pipe With quick hub, you simply push the coupling onto the pipe
Marketing Information
MIFAB® Series MI-QXHUB (specify size) heavy-duty shielded no-hub couplings are manufactured with gaskets made from neoprene (meets the requirements of ASTM C-564) housed inside a type 304 stainless steel corrugated shield. Four (2 in through 4 in size), six (5 in through 12 in size) type 304 stainless steel clamps tightened with 3/8 in type 305 stainless steel hex head screws surround the shield to provide the sealing force. MI-QXHUB Series couplings are tested and certified to the ASTM-C1540-2018 and CSA B602 standards and listed with IAPMO. The MI-QXHUB are also tested and certified by Intertek testing services to the CAN/ULC S102.2-10 smoke test. The MI-QXHUB are tested by IAPMO to comply to the FM 1680-1989 standard (except for markings).
MIFAB® MI-QXHUB-6 Coupling, 6 in, No-Hub, 27 psi, Stainless Steel
BrandMIFAB®
MFG #MI-QXHUB-6
Keller #1189773
My Part ##
Last Ordered#
$104.24 / ea
