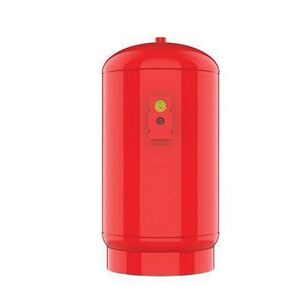

Bell & Gossett D Series 116525 Pressurized Expansion Tank, 33.6 gal Capacity, 1/2 in, MNPT, Carbon Steel
Bell & Gossett D Series 116525 Pressurized Expansion Tank, 33.6 gal Capacity, 1/2 in, MNPT, Carbon Steel
Bell & Gossett Pressurized Expansion Tank, D Series, 33.6 gal Capacity, 1/2 in Connection, MNPT Connection, Carbon Steel, 125 psi Working, 12 psi Pre-Charge, 240 deg F, 45-1/8 in H x 16-1/4 in Dia
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,898.15Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Capacity33.6
Connection Size1/2
Connection TypeMNPT
Dimensions45-1/8 " H x 16-1/4 " Dia
IndustryHydronics
MaterialCarbon Steel
Pressure Rating125 psi Working, 12 psi Pre-Charge
SeriesD Series
Temperature Rating240
Additional Information
Designed and constructed per ASME Section VIII|Division 1
Features & Benefits
- Series "D" expansion tanks are ASME-rated pre-charged diaphragm-type pressure vessels The Series "D" tank is designed to absorb the expansion forces of heating/cooling system water while maintaining proper system pressurization under varying operating conditions The heavy-duty diaphragm separates system water from the tank air charge thereby eliminating waterlogging problems Reduces oxygen corrosion Increases system performance Forged steel system connection 0.302 in - 32 NC charging valve 12-3/4 in Dia x 3/16 in Thick skirt 11.3 gal acceptance volume Not for potable water systems
Documents
Marketing Information
Pre-charged Expansion Tanks contain either a bladder or a diaphragm to separate the air charge from the system water. Tanks are design to absorb the expansion forces of heating/cooling system water while maintaining proper system pressurization under varying operating conditions.
Bell & Gossett D Series 116525 Pressurized Expansion Tank, 33.6 gal Capacity, 1/2 in, MNPT, Carbon Steel
BrandBell & Gossett
MFG #116525
Keller #1190032
My Part ##
Last Ordered#
$2,898.15Â /Â ea
