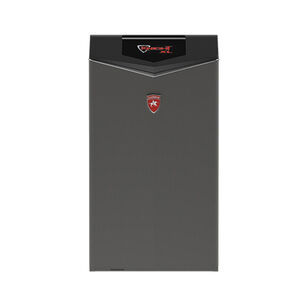

Lochinvar® KNIGHT™ XL KBX0650N KBX0650N-M13 Condensing Heating Boiler and Water Heater, 650000 Btu/hr BTU, 120 V
Lochinvar® KNIGHT™ XL KBX0650N KBX0650N-M13 Condensing Heating Boiler and Water Heater, 650000 Btu/hr BTU, 120 V
Lochinvar® KNIGHT™ XL Condensing Heating Boiler and Water Heater, Model: KBX0650N, 120 V, 60 Hz Frequency, 1 ph, 650000 Btu/hr BTU, 6.2 gal Capacity, 62 gpm Flow Rate, 160 psi Pressure, Natural Gas Fuel, Direct Vent, Modulating Burner, Chimney/Breeching/Vent Size: 6 in, Direct Spark Ignition, Net BTU Rating: 549 mbh, 52.2 sq-ft Area, Floor Mounting, Stainless Steel, Dimensions: 45 in H x 24 in W x 44-1/2 in D, Additional Information: 1-1/4 in Inlet Connection, 2 in Water Connection, 3/4 in Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$29,323.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLochinvar®
Additional Information1-1/4 " Inlet Connection, 2 " Water Connection, 3/4 " Valve
Area52.2
BTU Rating650000
Burner TypeModulating
Capacity6.2
Chimney/Breeching/Vent Size6
Dimensions45 " H x 24 " W x 44-1/2 " D
Flow Rate62
Frequency Rating60
Fuel TypeNatural Gas
Ignition TypeDirect Spark
MaterialStainless Steel
ModelKBX0650N
Mounting TypeFloor
Net BTU Rating549
Phase1
Pressure Rating160
Vent TypeDirect
Voltage Rating120
Additional Information
AHRI Certified|ASME Specified|CSA Certified
Features & Benefits
- The KNIGHT XL® has a new sleek appearance and a multitude of refinements sure to keep current fans and win over even more Provides a better end user experience allowing parameters to be adjusted with minimal effort and provide access to the remote connectivity when required for the installation Enhanced design provides a 3% increase in thermal efficiency over previous KNIGHT XL® design, lowering operating cost and boiler emissions The KBX1000 has an operating range from 999000 Btu/hr input all the way down to 99000 Btu/hr input matching the majority of commercial heating load requirements, eliminating short cycling of the heating system Collects debris from combustion make up air, potentially extending time between burner and heat exchanger cleanings
Documents
Marketing Information
Refined and on-line, the KNIGHT XL® remains the dependable workhorse with a new touchscreen control, increased thermal efficiency, 10 - 1 turndown and longer vent lengths than before.
