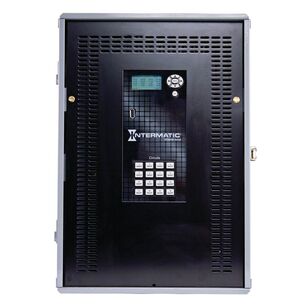

Astronomic 365-Day 16-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 16-SPDT/8-DPDT, Outdoor Metal Enclosure
Astronomic 365-Day 16-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 16-SPDT/8-DPDT, Outdoor Metal Enclosure
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hr override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Additional InformationItemSetpointProgramCount: 2000 ItemSwitchType_en: 16xSPDT, 8xDPDT ItemTungstenLoadRatingsNORanges_en: 5 A, 12-120 VAC, 50/60 Hz ItemTungstenNOLoadRatings_en: 5 A, 12 VAC, 50 Hz, 5 A, 24 VAC, 50 Hz, 5 A, 50 VAC, 50 Hz, 5 A, 110 VAC, 50 Hz, 5 A, 115 VAC, 50
IndustryLeisure
ItemBackupProtectionTime_en100 hr
ItemBackupRestorationTime_en30 min
ItemBackupType_enSupercapacitor
ItemDataTransferOptions_enEthernet Optional/USB
ItemDaylightSavingAdjustment_enAutomatic
ItemElectronicBallastLoadRatingsNORanges_en8 A, 120-277 VAC, 50/60 Hz
ItemElectronicBallastNOLoadRatings_en8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz, 8 A, 208 VAC, 50 Hz, 8 A, 208 VAC, 60 Hz, 8 A, 240 VAC, 50 Hz, 8 A, 240 VAC, 60 Hz, 8 A, 277 VAC, 50 Hz, 8 A, 277 VAC, 60 Hz
ItemElectronicSeries_enET90000 Series
ItemEnclosureType_enOutdoor type 3R metal
ItemGeneralPurposeLoadRatingsNCRanges_en10 A, 12-240 VAC, 50/60 Hz
ItemGeneralPurposeLoadRatingsNORanges_en30 A, 12-240 VAC, 50/60 Hz
ItemGeneralPurposeNCLoadRatings_en10 A,12 VAC,50 Hz,10 A,18 VAC,50 Hz,10 A,24 VAC,50 Hz,10 A,120 VAC,50 Hz,10 A,208 VAC,50 Hz,10 A,240 VAC,50 Hz,10 A,12 VAC,60 Hz,10 A,18 VAC,60 Hz,10 A,24 VAC,60 Hz,10 A,120 VAC,60 Hz,10 A,208 VAC,60 Hz,10 A,240 VAC,60 Hz
ItemGeneralPurposeNOLoadRatings_en30 A,12 VAC,50 Hz,30 A,18 VAC,50 Hz,30 A,24 VAC,50 Hz,30 A,120 VAC,50 Hz,30 A,208 VAC,50 Hz,30 A,240 VAC,50 Hz,30 A,12 VAC,60 Hz,30 A,18 VAC,60 Hz,30 A,24 VAC,60 Hz,30 A,120 VAC,60 Hz,30 A,208 VAC,60 Hz,30 A,240 VAC,60 Hz
ItemInputVoltageRanges_en120-277 VAC, 50/60 Hz
ItemMagneticBallastLoadRatingsNCRanges_en3 A, 120-277 VAC, 50/60 Hz
ItemMagneticBallastLoadRatingsNORanges_en20 A, 120-277 VAC, 50/60 Hz
ItemMagneticBallastNCLoadRatings_en3 A, 120 VAC, 50 Hz, 3 A, 208 VAC, 50 Hz, 3 A, 240 VAC, 50 Hz, 3 A, 277 VAC, 50 Hz, 3 A, 120 VAC, 60 Hz, 3 A, 208 VAC, 60 Hz, 3 A, 240 VAC, 60 Hz, 3 A, 277 VAC, 60 Hz
ItemMagneticBallastNOLoadRatings_en20 A, 120 VAC, 50 Hz, 20 A, 208 VAC, 50 Hz, 20 A, 240 VAC, 50 Hz, 20 A, 277 VAC, 50 Hz, 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz
ItemMarket_enCommercial, Industrial, Utility
ItemMaximumOnOffOperations_en2000
ItemMaximumOnOffTime_en365 days
ItemMaximumPulseTime_en23 hr, 59 min
ItemMinimumOnOffTime_en1 Sec
ItemMinimumPulseTime_en1 sec
ItemMotorLoadRatingsNCRanges_en1/4 HP, 120 VAC, 50/60 Hz, 1/2 HP, 240 VAC, 50/60 Hz
ItemMotorLoadRatingsNORanges_en1 HP, 120 VAC, 50/60 Hz, 2 HP, 240 VAC, 50/60 Hz
ItemNumberOfCircuits_en16
ItemOnOffOperations_en2000
ItemOperatingTemperatureMaxC40
ItemOperatingTemperatureMaxF104
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemOperationFeatures_enAstronomic, Holiday
ItemOperationMode_en365 day
ItemPilotDutyLoadRatingsNCRanges_en275 VA, 120-240 VAC, 50/60 Hz
ItemPilotDutyLoadRatingsNORanges_en470 VA, 120-240 VAC, 50/60 Hz
ItemPilotDutyNCLoadRatings_en275 VA, 120 VAC, 50 Hz, 275 VA, 208 VAC, 50 Hz, 275 VA, 240 VAC, 50 Hz, 275 VA, 120 VAC, 60 Hz, 275 VA, 208 VAC, 60 Hz, 275 VA, 240 VAC, 60 Hz
ItemPilotDutyNOLoadRatings_en470 VA, 120 VAC, 50 Hz, 470 VA, 208 VAC, 50 Hz, 470 VA, 240 VAC, 50 Hz, 470 VA, 120 VAC, 60 Hz, 470 VA, 208 VAC, 60 Hz, 470 VA, 240 VAC, 60 Hz
ItemPowerConsumptionMaxW_en50 W
ItemProductDepthIn5.4
ItemProductDepthMm138
ItemProductHeightIn17.9
ItemProductHeightMm454
ItemProductWidthIn12.7
ItemProductWidthMm322
ItemResistiveLoadRatingsNCRanges_en10 A, 28 VDC, 10 A, 12-240 VAC, 50/60 Hz
ItemResistiveLoadRatingsNORanges_en20 A, 28 VDC, 30 A, 12-240 VAC, 50/60 Hz
ItemResistiveNCLoadRatings_en10 A,28 VDC,10 A,12 VAC,50 Hz,10 A,18 VAC,50 Hz,10 A,24 VAC,50 Hz,10 A,120 VAC,50 Hz,10 A,208 VAC,50 Hz,10 A,240 VAC,50 Hz,10 A,12 VAC,60 Hz,10 A,18 VAC,60 Hz,10 A,24 VAC,60 Hz,10 A,120 VAC,60 Hz,10 A,208 VAC,60 Hz,10 A,240 VAC,60 Hz
ItemResistiveNOLoadRatings_en20 A at 28 VDC,30 A,12 VAC,50 Hz,30 A,18 VAC,50 Hz,30 A,24 VAC,50 Hz,30 A,120 VAC,50 Hz,30 A,208 VAC,50 Hz,30 A,240 VAC,50 Hz,30 A,12 VAC,60 Hz,30 A,18 VAC,60 Hz,30 A,24 VAC,60 Hz,30 A,120 VAC,60 Hz,30 A,208 VAC,60 Hz,30 A,240 VAC,60 Hz
Shipping Dimensions (L x W x H)22.63" x 17.25" x 9"
Additional Information
Title 20|cULus|cCSAus
Features & Benefits
- Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz Over 2,000 events plus holiday schedules Advanced scheduling including relative events, such as fourth Thursday of November or first week of year 30 A rated contacts 100-hour supercapacitor eliminates the need for batteries USB connection for uploading, downloading and transferring programs Easy-to-follow on-screen menus for programming to-the-minute accuracy Non-volatile memory protects programming indefinitely Firmware can be upgraded in-field via USB or Ethernet Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
Marketing Information
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
Astronomic 365-Day 16-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 16-SPDT/8-DPDT, Outdoor Metal Enclosure
BrandIntermatic®
MFG #ET91615CR
