ADA Compliant|CSA B651|ICC/ANSI A117.1

• Soap dispensing volume can be adjusted to 0.8, 1.2, 1.6 or 2 mL Sensor range adjustable from 1 to 4 in (25.4 to 101.6 mm) Default set at approximately 2-3/4 in (69.5 mm) Maintenance/cleaning mode is activated for 30 s when sensor is blocked for 10 s Vandal-resistant sensor delays dispensing for 20 sec if activated 4 times in under 5 sec Low soap and low battery above the counter indicators Easy below-the-counter refill Battery-operated (4 "D" batteries supplied) Requires low (1 to 20 cPs or g/ms) viscosity foam soap with no suspended particles Kohler® soap recommended for optimized performance and longevity

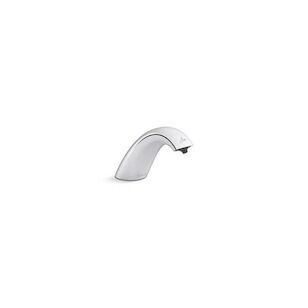

This curve 54 oz high-capacity touchless foaming soap dispenser is ready to tackle high-traffic applications. With solid brass construction, this battery-operated dispenser is equipped with above-the-counter lights to let you know when soap or battery life is low and a vandal-resistant sensor to prevent soap waste.
