cULus Listed|UL 103HT|ULC S604 MH7399

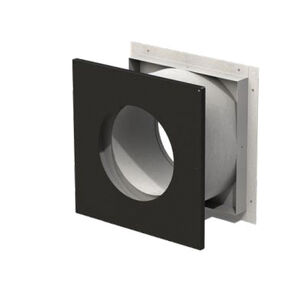

• Adjusts from a minimum of 5-1/2 in to a maximum of 9-1/2 in wall thickness, fits between standard wall studs and the interior trim is painted black To accommodate thicker walls, the telescoping pieces can be extended up to 16 in when a field fabricated extension is installed The wall thimble must be installed with DuraTech® chimney pipe horizontally through the walls and extend 6 in into the room beyond the interior walls

With a thermal tech blanket insulation encased between dual walls, DuraTech® offers the optimum in safety and performance. It keeps the outer wall of the chimney cool, while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys for an extra margin of safety. No locking bands or mechanical fasteners required. DuraTech's sleek 1 in wall design provides for easy installations through 16 in on center framing. For tight installations, a reduced clearance square ceiling support box is available (6 in Dia DuraTech® only). Designed for normal, continuous operation at 1000 deg F flue gas temperatures, DuraTech® is subjected to rigorous and stringent high temperature requirements of the UL standard, including 1 hr at 1400 deg F, plus three 10 min chimney fire test at 2100 deg F.
