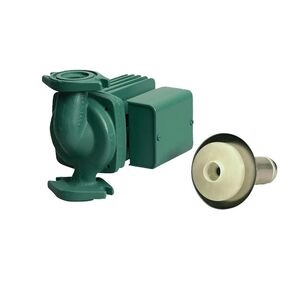

Taco Comfort Solutions® 0013-BF3-J Cartridge Circulator With Cast Iron Casing, 0 to 33 gpm, 115 V, 2 A, 60 Hz
Taco Comfort Solutions® 0013-BF3-J Cartridge Circulator With Cast Iron Casing, 0 to 33 gpm, 115 V, 2 A, 60 Hz
Taco Comfort Solutions® Cartridge Circulator, 0013 Model, 0 to 33 gpm Flow Rate, 0 to 33 ft Maximum Head, 115 V, 2 A, 60 Hz Frequency, 125 psi Maximum, 3250 rpm Motor Speed Rating, 1/6 hp Rating, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph, 40 to 230 deg F, Bronze, 7-3/4 in W x 6 in D x 6-1/2 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$721.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Amperage Rating2
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions7-3/4 " W x 6 " D x 6-1/2 " H
Flow Rate0 to 33
Frequency Rating60
HP Rating1/6
MaterialBronze
Maximum Head0 to 33
Maximum Pressure125
Model0013
Motor Speed Rating3250
Phase1
Temperature Rating40 to 230
Voltage Rating115
Additional Information
cULus Listed
Features & Benefits
- Standard high capacity output compact design Quiet, efficient operation Direct drive low power consumption Unique replaceable cartridge design field serviceable Self-lubricating No mechanical sea Unmatched reliability maintenance-free Anti-condensate baffle (ACB) to protect motor windings Plumb n' plug pre-wired timer control
Marketing Information
With their self-lubricating design and no mechanical seal, Taco 00® Series cartridge circulators provide unmatched reliability that makes them maintenance free. Every Taco 00® Series cartridge circulator and 00 IFCm® circulator features a field replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulate or so field service is fast and simple. 00® Series cartridge circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
