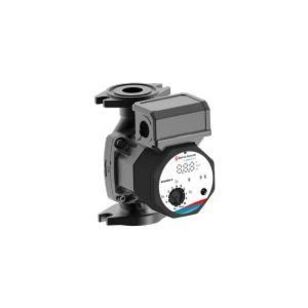

Bell & Gossett ecocirc® Ecocirc 20-18 60B0B1000 High Efficiency Wet Rotor Circulator With ECM, 115 VAC, 0.06 to 1.02 A
Bell & Gossett ecocirc® Ecocirc 20-18 60B0B1000 High Efficiency Wet Rotor Circulator With ECM, 115 VAC, 0.06 to 1.02 A
Bell & Gossett ecocirc® High Efficiency Wet Rotor Circulator, Model: Ecocirc 20-18, 115 VAC, 0.06 to 1.02 A, 50/60 Hz, 0 to 70 W, 18 gpm Flow Rate, 1 ph Phase, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, NPT Connection, IP44, NEMA 2 Enclosure, 145 psi, 20 ft Maximum Head, Cast Iron Body, 14 to 230 deg F, 5.9 in L x 4.29 in W x 6.38 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$485.95 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Amperage Rating0.06 to 1.02
Body MaterialCast Iron
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeNPT
Dimensions5.9 " L x 4.29 " W x 6.38 " H
Enclosure TypeIP44, NEMA 2
Flow Rate18
Frequency Rating50/60
Maximum Head20
Modelecocirc 20-18
Phase1
Power Rating0 to 70
Pressure Rating145
Temperature Rating14 to 230
Voltage Rating115
Features & Benefits
- Maximum of 20 ft of head or 18 gpm 70 W maximum power 3 modes - proportional pressure, constant pressure or adjustable speed control CircGuard™ complete integrated system protection Automatic air purge to remove any air trapped in the pump One turn knob and multicolor LED display for easy reading and setting of the pump Check valve included in box
Marketing Information
The newest generation variable speed ECM smart circulator, ecocirc® 20-18 from Bell & Gossett provides a superior product for both heating and cooling as well as potable water. Taking it further than ever before is our new ecocirc+ 20-18 model that allows for wireless connectivity directly to your phone for full control. Combine this pump with our incredible service network, and you have a winner.
Bell & Gossett ecocirc® Ecocirc 20-18 60B0B1000 High Efficiency Wet Rotor Circulator With ECM, 115 VAC, 0.06 to 1.02 A
BrandBell & Gossett
MFG #60B0B1000
Keller #1198807
My Part ##
Last Ordered#
$485.95 / ea
