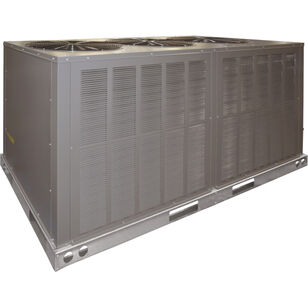

Rheem® Achiever® Series RACL2078CAZ Air Cooled Condensing Unit, 208/230 V, 38 A, 78000 Btu/hr, R-410A Refrigerant
Rheem® Achiever® Series RACL2078CAZ Air Cooled Condensing Unit, 208/230 V, 38 A, 78000 Btu/hr, R-410A Refrigerant
Rheem® Air Cooled Condensing Unit, Achiever® Series, 208/230 V, 38 A, 78000 Btu/hr, 3 ph Phase, 60 Hz, 6.5 ton Capacity, 5700 cfm Flow Rate, R-410A Refrigerant, 5/8 in, 1-5/8 in Connection, 11.2 EER Rating, Steel, Finish: Baked Enamel, Additional Information: Commercial, Split Scroll Compressor
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,107.71 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationCommercial, Split Scroll Compressor
Amperage Rating38
BTU Rating78000
Capacity6.5
Connection Size5/8 ", 1-5/8 "
EER Rating11.2
FinishBaked Enamel
Flow Rate5700
Frequency Rating60
MaterialSteel
Phase3
Refrigerant TypeR-410A
SeriesACHIEVER Series
Voltage Rating208/230
Warranty5 Year Compressor, 1 Year Parts
Additional Information
cULus Listed
Features & Benefits
- All access panels can be opened or removed without affecting the structural strength of the unit stamped louvered panels offer 100% protection for the condenser coil Lug for field connection of ground wire The contactor is an electrical switch which operates the compressor and outdoor fans Its 24 V coil is activated on a call for cooling or heating 75 VA step down-type, from Line to 24 V with resettable circuit breaker To provide compressor protection under abnormally high head pressure conditions (outdoor fan failure, restriction, dirty coil and more) or abnormally low suction pressure conditions (restrictions, TEV failure, loss of charge, indoor blower failure and more) while eliminating nuisance tripping sometimes experienced with conventional control systems Constructed with copper tubes and aluminum fins mechanically bonded to tubes for maximum heat transfer capabilities, all coil assemblies are leak tested up to 550 psig internal pressure Control box with separate line and control voltages, as well as compressor and other refrigerant controls are accessible through access panels, an electrical access cover may be opened or removed without affecting normal operation of the unit, condenser fan motors are equipped with molded plugs for easy removal, Louver panels and end access panel can be removed for coil cleaning Galvanized steel with weather-resistant baked enamel finish The scroll compressor is hermetically sealed with internal high temperature protection and durable insulation on motor windings, the entire compressor is mounted on rubber grommets to reduce vibration and noise To prevent liquid slugging of compressor Standard on liquid line and vapor line
Documents
Rheem® Achiever® Series RACL2078CAZ Air Cooled Condensing Unit, 208/230 V, 38 A, 78000 Btu/hr, R-410A Refrigerant
BrandRheem®
MFG #RACL2078CAZ
Keller #1200336
My Part ##
Last Ordered#
$9,107.71 / ea
