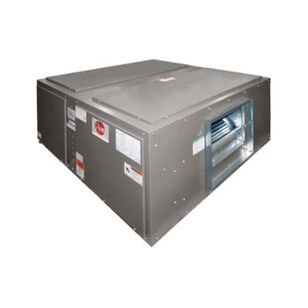

Rheem® RHCLA2090CAR Commercial Air Handler, 7.5 ton, 90000 Btu/hr Cooling, 3000 cfm, 208/230 V, 15 A, 2 hp, 60 Hz
Rheem® RHCLA2090CAR Commercial Air Handler, 7.5 ton, 90000 Btu/hr Cooling, 3000 cfm, 208/230 V, 15 A, 2 hp, 60 Hz
Rheem® Commercial Air Handler, 7.5 ton Nominal Capacity, 90000 Btu/hr Cooling Capacity, 208/230 V Voltage Rating, 15 A Amperage Rating, 2 hp Rating, 60 Hz Frequency Rating, 3 ph Phase, 3000 cfm Rating, Horizontal, Vertical Configuration, Connection Type: FNPT, R-410 Refrigerant Type, 15 A Fuse Rating, 4-Row, 15 FPI, 10.2 sq-ft Coil Rating, 3/4 in Connection, 1/2 in Liquid Line Size, 1-1/8 in Suction Line Size, 16 x 25 x 1 in Filter Size, 2 Number of Stages, 2 Number of Speeds, Drip-Proof Motor Type, 0.498 kPa, Steel, Galvanized/Pre-Painted, 27 in H x 52 in W x 52 in D Dimensions, Standard Design Series, Belt VFD Low Static Drive Package Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,400.27 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationStandard Design Series, Belt VFD Low Static Drive Package
Amperage Rating15
CFM Rating3000
Coil Rating4-Row, 15 FPI, 10.2 sq-'
ConfigurationHorizontal, Vertical
Connection Size3/4
Connection TypeFNPT
Cooling Capacity90000
Dimensions27 " H x 52 " W x 52 " D
Filter Size16 x 25 x 1
FinishGalvanized/Pre-Painted
Frequency Rating60
Fuse Rating15
HP Rating2
IndustryHVAC
Liquid Line Size1/2
MaterialSteel
Motor TypeDrip-Proof
Nominal Capacity7.5
Number of Speeds2
Number of Stages2
Phase3
Pressure Rating0.498
Refrigerant TypeR-410
Suction Line Size1-1/8
Voltage Rating208/230
WarrantyLimited, 1 Year Parts
Additional Information
AHRI Certified|California Title 24|cULus Listed
Features & Benefits
- Cabinet - powder coat painted, matching discharge plenums and decorative supply and return air grilles are available for use when units are to be installed within conditioned space Motor - inherently protected motors are mounted inside of insulated cabinet to reduce motor noise, a choice of motor horsepowers and drive combinations are available to allow you to meet specified cfm at various static pressures up to 2 in (0.498 kPa) external static pressure Low profile - allows for horizontal installation in most standard drop ceiling applications and the movement of units through most standard doorways for addition or replacement work Thermal expansion valves - standard all models Filters - 1 in throwaway filters are standard, but filter racks are designed to accept either 1 in or 2 in filters Evaporator coil - two circuit, interlaced row split coils are constructed with copper tubes and aluminum fins mechanically bonded to the tubes for maximum heat transfer capabilities, all coil assemblies are leak tested up to 450 psig [3100 kpa] internal pressure prior to installation into units Variable frequency drive - provides two-stage airflow for improved part load efficiency, meets California Title 24 requirements Refrigerant connections - field piping connections are made through a fixed post between two side access panels on either side of the unit, allows flexibility to meet most field conditions as well as full accessibility after the installation is complete, units may be used with two straight cool condensing units or single circuit manifold in the field using the copper fittings shipped with each unit Drain pan - the galvanized steel drain pan is designed to trap condensate in either vertical or horizontal installations, condensate drain connections are located on both sides of the unit allowing complete flexibility to meet most field conditions Service access - two-removable panels on top and each side of the unit are easily removed for access to motors, blowers, sheaves and filters Horizontal or vertical - all models are designed for either application and can be installed in either position as supplied from the factory Testing - all units are run tested at the factory prior to shipment, units are shipped with a holding charge of nitrogen
