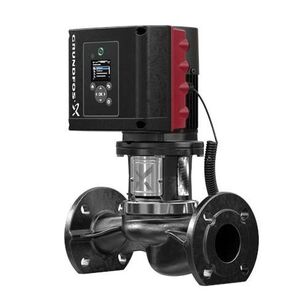

Grundfos TPE3 50-150 99836277 Circulator Pump, 100 gpm, 200/240 V, 4.10/3.5 A, 50/60 Hz, 174.05 psi Max Pressure, Iron
Grundfos TPE3 50-150 99836277 Circulator Pump, 100 gpm, 200/240 V, 4.10/3.5 A, 50/60 Hz, 174.05 psi Max Pressure, Iron
Grundfos Circulator Pump, Model: TPE3 50-150, 100 gpm Flow Rate, 31.17 ft Maximum Head, 200/240 V, 4.10/3.5 A, 50/60 Hz, 174.05 psi Maximum Pressure, 360 to 4000 rpm Motor Speed Rating, 1-1/2 hp, 53 mm Connection, GF Connection, 2.91 in Impeller Diameter, 3 ph Phase, -4 to 104 deg F, IP55 Enclosure, Iron, 19.2 in L x 11 in W, Additional Information: F Insulation Class, 11-1/16 in Port Size, 1-Stage, 56C Frame Size, 80B Motor, Composite Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$8,113.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Marketing Information
Attributes
BrandGrundfos
Additional InformationF Insulation Class, 11-1/16 " Port Size, 1-Stage, 56C Frame Size, 80B Motor, Composite Impeller Material
Amperage Rating4.10/3.5
Connection Size53
Connection TypeGF
Dimensions19.2 " L x 11 " W
Enclosure TypeIP55
Flow Rate100
Frequency Rating50/60
HP Rating1-1/2
Impeller Diameter2.91
IndustryPlumbing
MaterialIron
Maximum Head31.17
Maximum Pressure174.05
ModelTPE3 50-150
Motor Speed Rating360 to 4000
Phase3
Temperature Rating-4 to 104
Voltage Rating200/240
Additional Information
ASTM Class 35|EN-GJL-250
Marketing Information
Single stage, close coupled, volute pump with inline suction and discharge ports of identical diameter. The pump is of the top pull out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The shaft seal is according to EN 12756. The pump is fitted with a fan cooled, permanent magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The pump is fitted with a combined temperature and differential pressure sensor.
Grundfos TPE3 50-150 99836277 Circulator Pump, 100 gpm, 200/240 V, 4.10/3.5 A, 50/60 Hz, 174.05 psi Max Pressure, Iron
BrandGrundfos
MFG #99836277
Keller #1202422
My Part ##
Last Ordered#
$8,113.00Â /Â ea
