3/4 In Thermodynamic Steam Trap
3/4 In Thermodynamic Steam Trap
3/4 In Thermodynamic Steam Trap
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,030.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Depth2.8"
Height2.5"
Hydronic Item TypeSteam Trap
IndustryPlumbing
Inlet Connection Size3/4"
Inlet Connection Size Metric20 mm
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialStainless Steel
Maximum Operating Temperature Deg F800
Maximum Pressure Psi600
Maximum Steam Pressure Psi600
Maximum Temperature Deg F800
Maximum Working Pressure Psi600
Minimum Pressure Psi3.5
Outlet Connection Size3/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeMale Threaded
SeriesWTD
Weight2.2 lbs.
Width3.6"
Shipping Dimensions (L x W x H)2.8" x 3.6" x 2.5"
Features & Benefits
- Compact design
- Water hammer resistant
- Tight shutoff
- Stainless steel body
Documents
Marketing Information

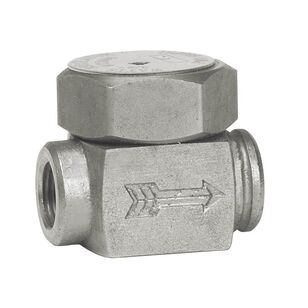

This thermodynamic steam trap, 3/4 IN Watts Model WTD, is used to efficiently drain steam mains, steam tracing lines, and small process equipment. It consists of a stainless steel body construction, stainless steel cap, and stainless steel disc. It provides a tight shutoff, is water hammer resistant, and drains condensate at saturation temperatures. It is ideal for use in steam main drainage, superheated steam applications, stream tracing lines, freeze protection for outside applications, and small process equipment.
3/4 In Thermodynamic Steam Trap
BrandWATTS®
MFG #0038202
Keller #1203331
