Victaulic®

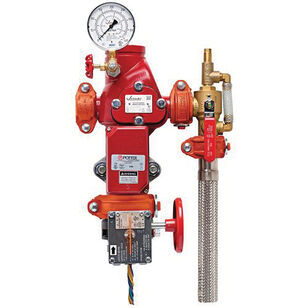

Victaulic® UMC Series S020UMCRV0 Universal Manifold Check Assembly, 2 in Nominal, Grooved, 300 psi, Iron Body
Victaulic®
Victaulic® UMC Series S020UMCRV0 Universal Manifold Check Assembly, 2 in Nominal, Grooved, 300 psi, Iron Body
MFG #S020UMCRV0
Item #1203522
Mfr. Part #S020UMCRV0
UPC #195150213377
Victaulic® Universal Manifold Check Assembly, UMC Series, 2 in Nominal, Grooved Connection, Right Handed, 300 psi, 17-1/2 in Inlet to Outlet Length, 5.88 in Top to Inlet Center, 71.43 Cv Flow Coefficient (Cv), Horizontal Mounting, Material Standard: ASTM A536 Grade 65-45-12, Iron Body, Brass Seat, EPDM Seal, Brass Trim, EPDM Softgoods, 21.13 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,948.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
ApplicationFor floor control assemblies may be utilized to meet the zone separation requirements of multistory applications exceeding two stories in height or whenever separate control or zoning is specified, shotgun riser assemblies may be utilized in vertical orie
Body MaterialIron
ConfigurationRight Handed
Connection TypeGrooved
Dimensions21.13 " H
Domestic/ImportDomestic
Flow Coefficient (Cv)71.43
IncludesIntegrated Check Valve, Series UTD (Universal Test Drain) with Integrated Series ARV (Adjustable Relief Valve), Quick Drain Hose, Vane-Type Flow Switch, Saddle-Type 2 in VSR Flow Switch and System Side Pressure Gauge and Supply Side Pressure Gauge
IndustryPlumbing
Inlet to Outlet Length17-1/2
Material StandardASTM A536 Grade 65-45-12
Mounting TypeHorizontal
Nominal Size2
Pressure Rating300
Seal MaterialEPDM
Seat MaterialBrass
SeriesUMC Series
Softgoods MaterialEPDM
Top to Inlet Center5.88
Trim MaterialBrass
Additional Information
CE Marked|cULus Listed|FM Approved
Features & Benefits
- Straight out of the box, the compact unit integrates all necessary components per NFPA 13 - control valve, check valve, flow switch, universal test and drain Right handed configuration, featuring a mirrored port for easy field changes
