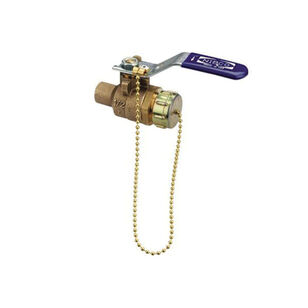

NIBCO S585-70HC-1/2 BRZ BALL VLV NOT FOR POTABLE USE
NIBCO S585-70HC-1/2 BRZ BALL VLV NOT FOR POTABLE USE
NIBCO® Ball Valve, 1/2 in Nominal, Solder x Hose Connection, Full Port, 600 psi, 2.9 in Inlet to Outlet Length, 1.88 in Top to Inlet Center, 1/2 in Opening, Lever Handle Operator, Material Standard: ASTM B584 Grade C84400, Bronze Body, PTFE Seat, Silicon Bronze Alloy Stem, RPTFE Seal, Bronze Trim, PTFE Packing, Carbon Steel Handle, Brass Ball
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$118.30 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Connection TypeSolder x Hose
Handle MaterialCarbon Steel
Inlet to Outlet Length2.9
Material StandardASTM B584 Grade C84400
Nominal Size1/2
Opening Size1/2
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialPTFE
Stem MaterialSilicon Bronze Alloy
Top to Inlet Center1.88
Trim MaterialBronze
Warranty5 Year Limited
Additional Information
MSS SP-110
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Chrome-plated brass ball, silicon-bronze stem Blowout-proof stem design Solder end x 3/4 in hose connection with cap and chain Dezincification-resistant Use in US drinking water applications is prohibited after January 3, 2014
Documents
Marketing Information
The NIBCO® full-port bronze ball valve has a solder end connection and hose connection with a hose cap and chain attached. The two piece valve is ideal for commercial and light industrial applications that require garden hose connections for drainage purposes. The NIBCO® bronze ball valve provides ease of operation with quarter turn (90 deg) open to close and offers bubble-tight shut-off at 600 psi. The valve is equipped with reinforced PTFE seat ring and brass hard chrome-plated ball. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. Five years 125% limited warranty.
