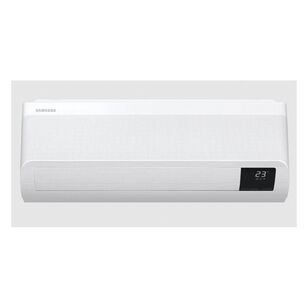

Samsung WindFree™ 2.0 DVM S Series AM009TNVDCH/AA Heat Pump Indoor Unit, 208 - 230 V, 0.2 A, 1 ph -Phase
Samsung WindFree™ 2.0 DVM S Series AM009TNVDCH/AA Heat Pump Indoor Unit, 208 - 230 V, 0.2 A, 1 ph -Phase
Samsung WindFree™ 2.0 Heat Pump Indoor Unit, Series: DVM S Series, 208 - 230 V, 0.2 A, 30 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 9500 Btu/hr Cooling, 10500 Btu/hr Heating, 244 cfm, 272 cfm, 300 cfm, Flared Connection, 32 dBA, 33 dBA, 34 dBA Sound Level, Wall Mounting, High Impact Polystyrene, 8-7/16 in Overall Length, 32-5/16 in Overall Width, 11-3/4 in Overall Height, For Use With: DVM S Water and DVM S Eco Systems, Additional Information: 2021 Version, Premium Feature, Heat Pump and Heat Recovery Mode
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,519.56 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information2021 Version, Premium Feature, Heat Pump and Heat Recovery Mode
Amperage Rating0.2
BTU Rating9500 Btu/hr Cooling, 10500 Btu/hr Heating
CFM Rating244 cfm, 272 cfm, 300 cfm
Connection TypeFlared
Frequency Rating60
MaterialHigh Impact Polystyrene
Mounting TypeWall
Number of Fan Speeds3
Overall Height11-3/4
Overall Length8-7/16
Overall Width32-5/16
Phase1
Power Rating30
SeriesDVM S Series
Sound Level32 dBA, 33 dBA, 34 dBA
Suitable For Use WithDVM S Water and DVM S Eco Systems
Voltage Rating208 - 230
Additional Information
cETLus Listed|ETL Listed|UL 1995
Features & Benefits
- Electro-static, washable, pleated filters as standard (included with unit) 7-segment digital display on front of unit to display temperature and unit status High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection Wind-Free™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants. The Wind-Free™ feature is optional and can be enabled using central or local control options (MWR-SH11UN, MWR-WE13UN, MWR-WG00*N, and AR-EH0*U only) The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single, antibacterial, crossflow type Three fan speed settings and auto setting Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The unit shall be operated via a wireless or wired remote control with DDC type signa The unit shall integrate with the Samsung NASA Controls Network Solution Controls shall integrate with a BMS system
Documents
Marketing Information
Samsung's exclusive WindFree™* cooling technology provides users with a cool indoor climate without the discomfort of direct cold airflow. It's an advantage no other system can match.
