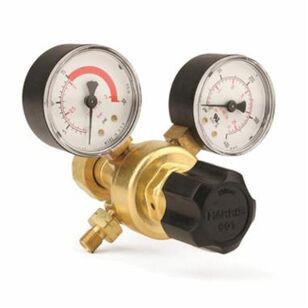

Harris® 601 Series 3000412 Light-Duty Economical Regulator, Oxygen Gas, 1-Stage, CGA-540 Inlet Connection
Harris® 601 Series 3000412 Light-Duty Economical Regulator, Oxygen Gas, 1-Stage, CGA-540 Inlet Connection
Harris® Light-Duty Economical Regulator, Series: 601 Series, 1-Stage, Oxygen Gas, CGA-540 Inlet Connection, 3/8-24 Outlet Connection, 50 mm Gauge, Delivery Pressure Range: 0 to 80 psig, 400 psig Supply Pressure Gauge, 3000 psig Maximum Inlet Pressure, ABS Body, Additional Information: 4.88 in H x 4.16 in W Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$155.02 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHarris®
Additional Information4.88 " H x 4.16 " W Dimensions
BodyBrass
Body MaterialABS
BonnetBrass
Cv0.08
Delivery Pressure Gauge (PSIG)100
Delivery Pressure Range0 to 80
Delivery Pressure Range (PSIG)0 - 80
DiaphragmNeoprene
DutyLight
Gas TypeOxygen
Gas/Gas ServiceOxygen
Gas/Gas ServiceOxygen
Gauge Size50
Gauges50mm ABS plastic dual scale (PSI/BAR)
Inlet ConnectionCGA 540
Inlet Connection SizeCGA-540
Maximum Inlet Pressure3000
Maximum Inlet Pressure (PSIG)3000
ModelName601-80-540-A
Number of Stages1
Outlet ConnectionA 3/8" - 24 RH
Outlet Connection Size3/8-24
Pressure Regulation PSIG/100 PSIG0.4
SeatPTFE Teflon
Series601 Series
Supply Pressure Gauge400
Supply Pressure Gauge (PSIG)4000
Warranty7 Year Limited
Additional Information
CGA E-4|UL Listed
Features & Benefits
- Compact design at an economical price For applications where weight, cost and size are critical factors Higher end features at an economical price Brass body and bonnet for longer service life Large plastic knob for easy grip and precise adjustments 50mm ABS plastic dual scale easy-to-read gauges One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination Neoprene diaphragm for improved pressure control UL® listed
Marketing Information
This single-stage regulator is designed to be compact and economical, but with features typically available in more expensive regulators. It is used where weight, cost and size are factors.
