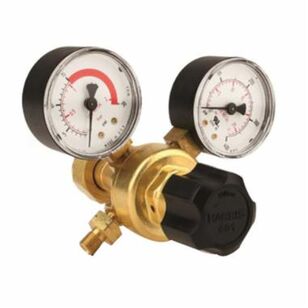

Harris® 601-15-200A 3000407 Light-Duty Regulator, Acetylene Gas Fuel, 500 lbf/sq-in, Brass
Harris® 601-15-200A 3000407 Light-Duty Regulator, Acetylene Gas Fuel, 500 lbf/sq-in, Brass
Harris® Light-Duty Regulator, Model: 601-15-200A, CGA-200MC x LH Male Connection, Acetylene Gas Fuel, 500 lbf/sq-in, Brass, 4.88 in H x 4.16 in W, Additional Information: Light-Duty
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$155.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHarris®
Additional InformationLight-Duty
ApplicationFor gas shielded welding and other industrial gas applications
BodyBrass
BonnetBrass
Connection TypeCGA-200MC x LH Male
Cv0.08
Delivery Pressure Gauge (PSIG)30RZ
Delivery Pressure Range (PSIG)0 - 15
DiaphragmNeoprene
Dimensions4.88 " H x 4.16 " W
DutyLight
Fuel TypeAcetylene Gas
Gas/Gas ServiceAcetylene
Gauges50mm ABS plastic dual scale (PSI/BAR)
Inlet ConnectionCGA 200
MaterialBrass
Maximum Inlet Pressure (PSIG)400
Model601-15-200A
ModelName601-15-200-A
Outlet ConnectionA 3/8" - 24 LH
Pressure Rating500
Pressure Regulation PSIG/100 PSIG0.4
SeatPTFE Teflon
Supply Pressure Gauge (PSIG)400
Warranty7 Year
Additional Information
CGA E-4|UL Listed
Features & Benefits
- Compact design at an economical price For applications where weight, cost and size are critical factors Higher end features at an economical price Brass body and bonnet for longer service life Large plastic knob for easy grip and precise adjustments 50mm ABS plastic dual scale easy-to-read gauges One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination Neoprene diaphragm for improved pressure control UL® listed
Documents
Harris® 601-15-200A 3000407 Light-Duty Regulator, Acetylene Gas Fuel, 500 lbf/sq-in, Brass
BrandHarris®
MFG #3000407
Keller #1204463
