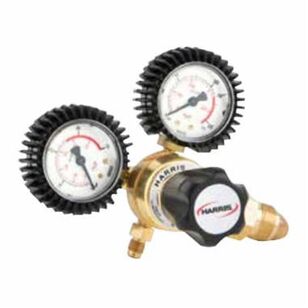

Harris® 601-800-580 3000649 Purging Regulator, Argon Gas, Helium Gas, Nitrogen Gas Fuel, 3000 lbf/sq-in, Brass
Harris® 601-800-580 3000649 Purging Regulator, Argon Gas, Helium Gas, Nitrogen Gas Fuel, 3000 lbf/sq-in, Brass
Harris® Purging Regulator, Model: 601-800-580, CGA-580 x SAE Flared Connection, Argon Gas, Helium Gas, Nitrogen Gas Fuel, 3000 lbf/sq-in, Brass, 10.24 in H x 7.28 in W, Additional Information: Light to Medium Duty
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$187.72 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHarris®
Additional InformationLight to Medium Duty
ApplicationFor HVAC purging, pressure testing and blanketing applications
BodyBrass
BonnetBrass
Connection TypeCGA-580 x SAE Flared
Cv0.17
Delivery Pressure Gauge (PSIG)1450
Delivery Pressure Range (PSIG)0 - 800
DiaphragmNeoprene
Dimensions10.24 " H x 7.28 " W
DutyLight to medium
Equipped WithRubber gauge guards - Model CPR63332 - PN 9003727
Fuel TypeArgon Gas, Helium Gas, Nitrogen Gas
Gas/Gas ServiceArgon;Helium;Nitrogen
Gauges50mm ABS plastic dual scale (PSI/BAR)
IndustryPlumbing
Inlet ConnectionCGA 580
MaterialBrass
Maximum Inlet Pressure (PSIG)3000
Model601-800-580
ModelName601-800-580 (Clam)
Outlet Connection1/4" 45 deg Flare SAE CGA 165
Pressure Rating3000
Pressure Regulation PSIG/100 PSIG0.4
Recommended Items/AccessoriesRubber Gauge Guards - Model CPR63332 - PN 9003727
SeatPTFE Teflon
Supply Pressure Gauge (PSIG)4500
Warranty7 Year
Additional Information
CGA E-4
Features & Benefits
- For applications where weight, cost and size are critical factors Ideal for HVAC purging, pressure testing and blanketing Higher end features at an economical price Brass body and bonnet for longer service life Ergonomic ABS plastic knob for easy grip and precise adjustments 50mm ABS plastic dual scale easy-to-read gauges One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination Neoprene diaphragm for improved pressure control Equipped with rubber gauge guards for added protection in abusive conditions Conveniently packaged in clamshell for point-of-purchase display
