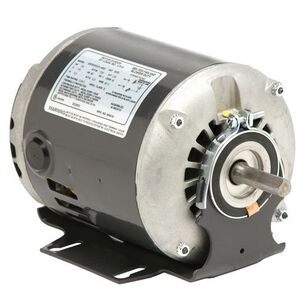

US Motors® 1789 Fan and Blower Motor, 230 VAC, 2.9 A Full Load, 1/3 to 1/6 hp, 1725 rpm, 1140 rpm Speed, 60 Hz
US Motors® 1789 Fan and Blower Motor, 230 VAC, 2.9 A Full Load, 1/3 to 1/6 hp, 1725 rpm, 1140 rpm Speed, 60 Hz
US Motors® Fan and Blower Motor, 230 VAC, 2.9 A Full Load, 1/3 to 1/6 hp, 1725 rpm, 1140 rpm, 60 Hz, Open Drip-Proof Motor Enclosure, 48 Frame, 0.5 in Dia x 1.562 in L Shaft, Reversible Rotation, 2 Speed, 51.1 % Efficiency, Ball Bearing, Resilient Base Mounting, Belt Drive, B Insulation Class, 1.35 Service Factor, 5.625 in Dia x 10.437 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$37.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandPASCO
Amperage Rating2.9 A Full Load
Bearing TypeBall
Dimensions5.625 " Dia x 10.437 " L
Drive TypeBelt
Efficiency51.1
Frame Size48
Frequency Rating60
HP Rating1/3 to 1/6
IndustryPlumbing
Insulation ClassB
Motor Enclosure TypeOpen Drip-Proof
Mounting TypeResilient Base
Number of Speeds2
Rotation TypeReversible
Service Factor1.35
Shaft Size0.5 " Dia x 1.562 " L
Speed Rating1725 rpm, 1140 rpm
Voltage Rating230
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Automatic thermal overload protection With threaded conduit hole Rotation is CW facing shaft end, easily reversible by electrical reconnection, sleeve bearing
US Motors® 1789 Fan and Blower Motor, 230 VAC, 2.9 A Full Load, 1/3 to 1/6 hp, 1725 rpm, 1140 rpm Speed, 60 Hz
BrandPASCO
MFG #1789
Keller #120516
My Part ##
Last Ordered#
$37.50 / ea
