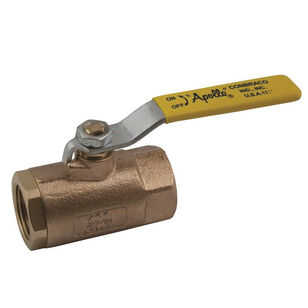

Apollo® 70-100 Series 70-105-2741 Ball Valve, 1 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® 70-100 Series 70-105-2741 Ball Valve, 1 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® Ball Valve, 70-100 Series, 1 in Nominal, FNPT Connection, Standard Port, 2-Piece, 150 psi WSP, 600 psi CWP, Gas, Steam, Water Media, 0.87 in Orifice, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Latch-Lock Lever Handle Operator, Material Standard: ASTM B16, ASTM B283, ASTM B584, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, Brass/PTFE/RPTFE Trim, MPTFE Packing, Steel/Vinyl Handle, Brass Ball, MPTFE/PTFE/RPTFE Softgoods, Contains Lead, Yellow, 500 deg F, 3.37 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$108.57 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBronze
ColorYellow
Configuration2-Piece
Connection TypeFNPT
Dimensions3.37 " L
Domestic/ImportDomestic
Handle MaterialSteel/Vinyl
Inlet to Outlet Length3.37
Material StandardASTM B16, ASTM B283, ASTM B584
MediaGas, Steam, Water
Nominal Size1
Operator TypeLatch-Lock Lever Handle
Orifice Size0.87
Packing MaterialMPTFE
Port TypeStandard
Pressure Rating150 psi WSP, 600 psi CWP
Seal MaterialPTFE
Seat MaterialRPTFE
Series70-100 Series
Softgoods MaterialMPTFE/PTFE/RPTFE
Stem MaterialBrass
Temperature Rating500
Top to Inlet Center2-1/4
Trim MaterialBrass/PTFE/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)7.45" x 2.76" x 4.43"
Additional Information
ARRA Compliant|CRN OC10908.5C|MSS-SP-110
Features & Benefits
- Premium materials and heavy-duty construction Adjustable stem packing gland Blowout-proof stem design RPTFE seats and MPTFE stem packing rings Chromium-plated ball 100% factory tested Manufactured in the USA - ARRA compliant
Documents
Marketing Information
The Apollo® 70 Series is the most widely used general-purpose bronze ball valve on the market today. The 70-100 model is a two-piece standard port ball valve featuring FNPT connections. Cast and machined in Apollo® South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
