• Lead free brass body
• Stainless steel stem and spring
• Oversized orifice
• Tee handle adjustment
• NPT threaded female inlet and outlet connections
• Temperature range is 0 to 140 degrees F (-18 to 60 degrees C)
• Maximum working pressure is 300 psi (21 bar)

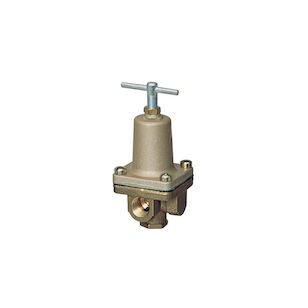

This 3/8 inch lead free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing, paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port with gauge, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 10 to 125 psi (0.7 to 8.6 bar) and is factory set at 25 psi (1.7 bar).
