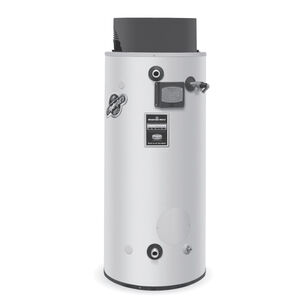

Bradford White® Commander Series® UCG-100H-270-3N-NDD Gas Water Heater, 100 gal, 270000 Btu/hr, Natural Gas
Bradford White® Commander Series® UCG-100H-270-3N-NDD Gas Water Heater, 100 gal, 270000 Btu/hr, Natural Gas
Bradford White® Gas Water Heater, 100 gal Capacity, 270000 Btu/hr BTU, Recovery Rate: 665 gph, 82 % Efficiency, Vent Size: 6 in, Vent Type: Atmospheric, NPT Connection, 150 psi Pressure, Energy Star Compliant: No, Natural Gas Fuel, Direct Spark Ignition, Vitraglas® Enamel, Lead-Free/Contains Lead: Contains Lead, 180 deg F, 28 in Dia x 70 in H x 30 in D, Altitude: 10000 ft, 3/4 in Gas Connection, 1-1/2 in Water Connection, Ultra Low Nox Burner
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,721.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBradford White®
Additional Information3/4 " Gas Connection, 1-1/2 " Water Connection, Ultra Low Nox Burner
Altitude10000 ft
BTU Rating270000
Capacity100
Connection TypeNPT
Dimensions28 " Dia x 70 " H x 30 " D
Efficiency82
FinishVitraglas Enamel
Fuel TypeNatural Gas
Ignition TypeDirect Spark
IndustryPlumbing
Pressure Rating150
Recovery Rate665
Sub-brandCommander Series
Temperature Rating180
Vent Size6"
Vent TypeAtmospheric
Additional Information
AHRI Certified|ASME Specified|CSA Certified|NSF Certified
Features & Benefits
- ICON HD® intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display Operation mode - two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180 deg F and adjusting the degree setting (deg F to deg C or deg C to deg F) Can either be installed as a traditional atmospheric product requiring inside air for combustion or applications where outside air is preferred Premix power burner - a self compensating negative pressure system automatically regulates fuel flow when a change in combustion air is detected Direct spark ignition for improved operational dependability and durability Two pass fire - tube heat exchanger system - keeps hot combustion gases moving at a high velocity The combination of high turbulence and velocity causes an enormous rate of heat transfer into the water Vitraglas® Lining with Microban® - an exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® anti-microbial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining Hydrojet® total performance system Insulation system non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity Water connections - factory installed true dielectric fittings extend water heater life and simplify water line connections
Bradford White® Commander Series® UCG-100H-270-3N-NDD Gas Water Heater, 100 gal, 270000 Btu/hr, Natural Gas
BrandBradford White®
MFG #UCG-100H-270-3N-NDD
Keller #1207302
My Part ##
Last Ordered#
$13,721.00 / ea
