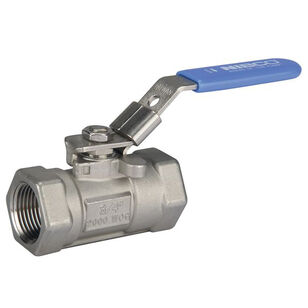

NIBCO T560S6R66FSLL-1/2 SS BALL VLV
NIBCO T560S6R66FSLL-1/2 SS BALL VLV
NIBCO® 1-Piece Ball Valve, T-560-S6-R-66-FS-LL Series, 1/2 in Nominal, FIPT Connection, Reduced Port, 2000 psi, 2.6 in Inlet to Outlet Length, 1.97 in Top to Inlet Center, 0.31 in Opening, Quarter-Turn Locking Lever Handle Operator, 5 Cv Flow Coefficient (Cv), Material Standard: ASTM A240/A276/A351, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, 316 Stainless Steel Trim, Graphoil Packing, 304 Stainless Steel Handle, Stainless Steel Ball, PTFE Softgoods, 400 deg F, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$167.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialStainless Steel
Body MaterialStainless Steel
Connection TypeFIPT
Domestic/ImportImport
Flow Coefficient (Cv)5
Handle Material304 Stainless Steel
IndustryPlumbing
Inlet to Outlet Length2.6
Material StandardASTM A240/A276/A351
Nominal Size1/2
Opening Size0.31
Operator TypeQuarter-Turn Locking Lever Handle
Packing MaterialGraphoil
Port TypeReduced
Pressure Rating2000
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesT-560-S6-R-66-FS-LL Series
Softgoods MaterialPTFE
Stem Material316 Stainless Steel
Temperature Rating400
Top to Inlet Center1.97
Trim Material316 Stainless Steel
Warranty5 Year Limited
Shipping Dimensions (L x W x H)3.86"
Additional Information
API 607 4th Edition Fire Safe|MSS SP 110
Features & Benefits
- Valve pressure rating 2000 psi non-shock cold working pressure Blowout-proof stem
Marketing Information
The NIBCO® ball valve provides ease of operation with quarter-turn (90 deg) open to close. The reinforced PTFE seat ring, graph oil stem packing and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The one-piece design eliminates leak paths. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO® Inc. 5 years 125% limited warranty.
