OSHA Approved|ASTM E814|UL File No. 1479|CAN/ULC S115|ASTM E90|ASTM G21|Buy American Act Compliant|cULus Listed

• Telescoping design adjusts from 7-1/2 to 11-3/4 in, 1/2 in increments Sleeve only, fire stopping provided by others (no intumescent material included), can achieve 2 or 3 hr F ratings Cut to as short as 4-1/2 in For insulated pipes up to 6 in total diameter, non-insulated pipes up to 6 in Dia and plastic pipes up to 2 in Dia Includes locator whiskers to easily locate buried sleeves Dimensions on sleeve allows for simple height adjustment when cutting Safety caps meet OSHA hole cover requirements Accepts HoldRite® HydroFlame™ Pro Series corrugated metal deck plate, for corrugated deck forms For use with floor drains, shower drains, closet flanges, multi-pipe penetrations, refer line-sets, etc.

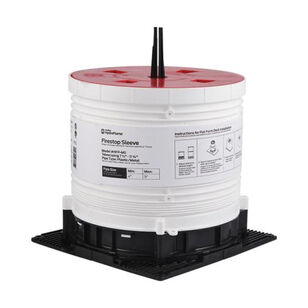

Get the same adjustable sleeve design even when others provide fire stopping or you want more annular space. HydroFlame™ Pro Series telescoping hollow sleeves don't include intumescent material and can achieve two or three hour F ratings. This fast, simple concrete sleeve for corrugated metal decks or flat form decks remains in the slab, unlike typical hollow sleeves.
