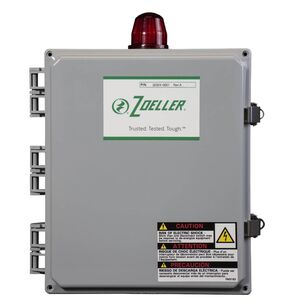

Zoeller® Pivot Series 32324-0001 Duplex Control Panel
Zoeller® Pivot Series 32324-0001 Duplex Control Panel
Zoeller® Duplex Control Panel, Pivot Series, 120/208/240 V, 40 W Power Consumption, 50/60 Hz, 7 to 15 A Contact Rating, -40 to 60 deg C, 12 x 10 x 6 in, Additional Information: 1-Phase, NEMA 4X Enclosures
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,695.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZoeller®
Additional Information1-Phase, NEMA 4X Enclosures
Contact Rating7 to 15
Dimensions12 x 10 x 6
Frequency Rating50/60
Power Consumption40
SeriesPivot Series
Temperature Rating-40 to 60
Voltage Rating120/208/240
Shipping Dimensions (L x W x H)12" x 6" x 10"
Additional Information
cCSAus Certified|FCC Class B|ISED Canada ICES-003|UL 508
Features & Benefits
- Red alarm beacon with 360 deg visibility Audible alarm buzzer rated 95 db at 2 ft (0.6 m) Silence/reset/test toggle switch with weather-proof rubber boot Hand/off/auto control are included for each pump Auxiliary output dry contacts (NO-COM-NC) terminals, Form C, 5 A resistive load Pump run dry contact, (NO-COM) NEMA 4X 14 x 12 x 6 in enclosure with lockable latch Control circuit powered by 120 VAC, 60 Hz Alarm circuit can be powered by separate power feed, if needed Alarm and control circuits individually fused, 3 A, fast acting, 120 VAC Circuit breaker protection on 1 ph models Multi-tap 200/230/460 V transformer on 3 ph models Max alarm and control circuit power consumption - simplex models 32 W, duplex models 40 W Max standby power consumption - 5 W Terminals for 120 V control power, 120 V alarm power, up to 4 float switches (duplex), pump input power 3 ph IEC motor contactors, models 208/230/380/460/575 VAC, 60 Hz Two sets of wiring schematics and installation instructions are included along with an inside door-mounted QR code for easy access to additional support material online All wires and terminal locations thoroughly labeled for easy identification All components are serviceable
Documents
Marketing Information
1 ph simplex and duplex panels loaded with many more standard features than typical panels. Many counters and alarms built-in.
Zoeller® Pivot Series 32324-0001 Duplex Control Panel
BrandZoeller®
MFG #32324-0001
Keller #1210079
