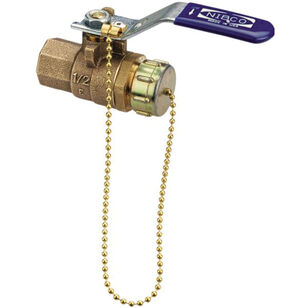

NIBCO® T-585-70-HC Series NL95806 2-Piece Ball Valve With Cap and Chain, 1/2 x 3/4 in, NPT x Hose, Bronze, 600 psi
NIBCO® T-585-70-HC Series NL95806 2-Piece Ball Valve With Cap and Chain, 1/2 x 3/4 in, NPT x Hose, Bronze, 600 psi
NIBCO® 2-Piece Ball Valve With Cap and Chain, T-585-70-HC Series, 1/2 x 3/4 in Nominal, NPT x Hose Connection, Full Port, 600 psi, 2.84 in Inlet to Outlet Length, 1.88 in Top to Inlet Center, 1/2 in Opening, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B124/B371/B584, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, RPTFE Seal, Bronze Trim, PTFE Packing, Steel Handle, Brass Ball, EPDM Softgoods, 400 deg F, 5.19 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$114.70 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Connection TypeNPT x Hose
Dimensions5.19 " L
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length2.84
Material StandardASTM B124/B371/B584
Nominal Size1/2 x 3/4
Opening Size1/2
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesT-585-70-HC Series
Softgoods MaterialEPDM
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Top to Inlet Center1.88
Trim MaterialBronze
Warranty5 Year Limited
Shipping Dimensions (L x W x H)13.63" x 50.21" x 9"
Additional Information
MSS SP 110
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Blowout-proof stem Dezincification-resistant
Documents
Marketing Information
The NIBCO® full port valve features thread end connections for easy installation. The bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close and bubble-tight shut-off at 600 psi. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. 5 years 125% limited warranty.
NIBCO® T-585-70-HC Series NL95806 2-Piece Ball Valve With Cap and Chain, 1/2 x 3/4 in, NPT x Hose, Bronze, 600 psi
BrandNIBCO®
MFG #NL95806
Keller #121108
My Part ##
Last Ordered#
$114.70 / ea
