3/4 IN Lead Free Thermostatic Mixing Valve Quick Connect End Connections Adjustable Out 80-120 F
3/4 IN Lead Free Thermostatic Mixing Valve Quick Connect End Connections Adjustable Out 80-120 F
3/4 IN Lead Free Thermostatic Mixing Valve Quick Connect End Connections Adjustable Out 80-120 F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$813.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Buy American Act CompliantYes
Cold Inlet Temperature Range39 to 85 deg F
Cold Water Inlet Connection TypeQuick Connect
Cold Water Inlet Size0.75''
Depth2.44"
Factory Set Temperature Deg F105
FinishRough Bronze
Flow Rate (GPM)0.5 to 20 gal/min
Height7.38"
Hot Inlet Temperature Range120 to 180 degree F
Hot Water Inlet Connection Size0.75''
Hot Water Inlet Connection TypeQuick Connect
IndustryPlumbing
MaterialLead Free Copper Silicon Alloy
Maximum Pressure Differential25 Percent
Maximum Working Pressure Psi150
Minimum Differential Temperature Deg F5
Minimum Static Pressure Psi30
Outlet Connection Size3/4"
Outlet Connection Size Mm20 mm
Outlet Connection TypeQuick Connect
Outlet Temperature Accuracyplus /- 7 deg F
Prop 65 WarningYes
SeriesLFMMV
Temperature Adjustment Range80 to 120 deg F
Weight3.25 lbs.
Width5.63"
Shipping Dimensions (L x W x H)5.625" x 7.38" x 2.63"
Features & Benefits
- Lead free brass construction
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
Documents
Marketing Information

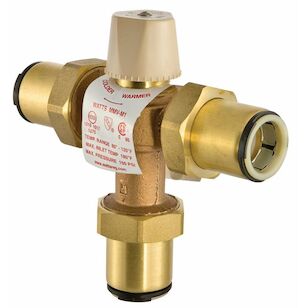

This 3/4 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, quick-connect end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
3/4 IN Lead Free Thermostatic Mixing Valve Quick Connect End Connections Adjustable Out 80-120 F
BrandWATTS®
MFG #0559165
Keller #1211447
