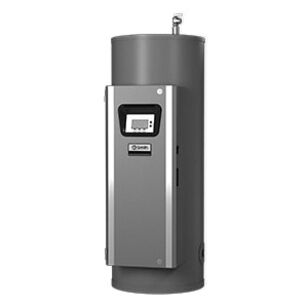

AO Smith® DSE-10A-3 Heavy-Duty Electric Water Heater, 10 gal, 20472 Btu/hr, 6 kW, 3 ph, 380-415 V
AO Smith® DSE-10A-3 Heavy-Duty Electric Water Heater, 10 gal, 20472 Btu/hr, 6 kW, 3 ph, 380-415 V
AO Smith® Heavy-Duty Electric Water Heater, 10 gal Capacity, 20472 Btu/hr, 6 kW, 1 Elements, 6000 W Element Wattage, 8.3 to 9.1 A, 380-415 V, 3 ph Phase, NPT Connection, 3/4 in Connection, 160 psi, Steel, Finish: Baked Enamel, 18 in Dia x 28.13 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandAO Smith®
Amperage Rating8.3 to 9.1
BTU Rating20472
Capacity10
Connection Size3/4"
Connection TypeNPT
Dimensions18 " Dia x 28.13 " H
Element Wattage6000
FinishBaked Enamel
IndustryPlumbing
MaterialSteel
Number of Elements1
Phase3
Power Rating6
Pressure Rating160
Voltage Rating380-415
Additional Information
ASME Specified|CSA Certified
Features & Benefits
- A. O. Smith® new proprietary electronic water heater control provides precise plus or -1 deg temperature control that is ideal for industrial and food service applications where exact temperatures are needed Animated icons display detailed operational and diagnostic information Fault or alert messages appear if an operational issue occurs Each element is constantly monitored and current On/Off state is displayed any element failure is reported and its exact location is shown, eliminates a need for field testing of elements Factory standard on board low water cut-off uses a remote electric immersion-type probe to prevent energizing of the elements in the event of low water condition and eliminates accidental dry firing Units with multiple element contactors are sequenced on with 1 s delay between stages Prevents high amp electrical loads from hitting the electric system all at once and provides a smoother operating unit Control system automatically lowers the operating set point by a user defined value during setback periods Seven-day clock may be programmed for night set back and or weekend shutdown to reduce operating cost and save energy Heavy-duty elements provide excellent protection against oxidation and scaling 120 V control circuit powered by fused transformer Simplified circuitry, color-coded for ease of service Hinged control compartment door
AO Smith® DSE-10A-3 Heavy-Duty Electric Water Heater, 10 gal, 20472 Btu/hr, 6 kW, 3 ph, 380-415 V
BrandAO Smith®
MFG #DSE-10A-3
Keller #1212030
My Part ##
Last Ordered#
Call for Price / ea
