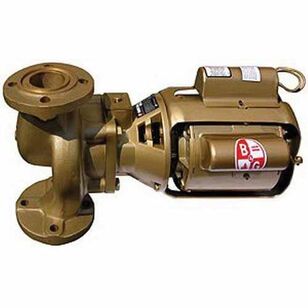

Bell & Gossett 2 BNFI 102217 Circulator Pump, 170 gpm, 115 V, 1.9 A, 60 Hz, 125 psi Max Pressure, 1725 rpm Motor, Bronze
Bell & Gossett 2 BNFI 102217 Circulator Pump, 170 gpm, 115 V, 1.9 A, 60 Hz, 125 psi Max Pressure, 1725 rpm Motor, Bronze
Bell & Gossett Circulator Pump, Model: 2 BNFI, 170 gpm Flow Rate, 35 ft Maximum Head, 115 V, 1.9 A, 60 Hz, 125 psi Maximum Pressure, 1725 rpm Motor Speed Rating, 1/6 hp, 2 in Connection, Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Bronze, 8-1/2 in H x 16-5/8 in W, Additional Information: Polypropylene Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,662.78Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBell & Gossett
Additional InformationPolypropylene Impeller Material
Amperage Rating1.9
Connection Size2
Connection TypeFlanged
Dimensions8-1/2 " H x 16-5/8 " W
Flow Rate170
Frequency Rating60
HP Rating1/6
IndustryHydronics
MaterialBronze
Maximum Head35
Maximum Pressure125
Model2 BNFI
Motor Speed Rating1725
Mounting Type"-Line
Phase1
Temperature Rating225
Voltage Rating115
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Model 2 BNFI is oil lubricated with motor Designed for applications that require increased flow and head pressures, with the ability to overcome more friction loss than smaller Bell & Gossett booster pumps The 3-part design (motor, bearing assembly, volute) results in compact construction and ease of repair in the field Equipped with the incomparable B&G manufactured motor for quiet and efficient operation Carbon on ceramic mechanical seal Heat treated carbon steel shaft A tube of Bell & Gossett oil along with flange gaskets and mounting hardware are included with the pump
Bell & Gossett 2 BNFI 102217 Circulator Pump, 170 gpm, 115 V, 1.9 A, 60 Hz, 125 psi Max Pressure, 1725 rpm Motor, Bronze
BrandBell & Gossett
MFG #102217
Keller #1214225
My Part ##
Last Ordered#
$1,662.78Â /Â ea
