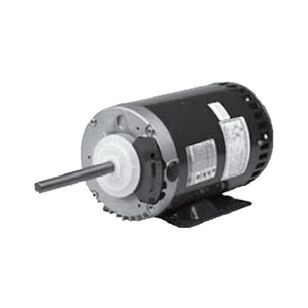

US Motors® 8058 Condenser Fan Motor, 200 to 230/460 V, 3.6/1.8 A Full Load, 1 hp, 1140 rpm Speed, 3 ph -Phase
US Motors® 8058 Condenser Fan Motor, 200 to 230/460 V, 3.6/1.8 A Full Load, 1 hp, 1140 rpm Speed, 3 ph -Phase
US Motors® Condenser Fan Motor, 200 to 230/460 V, 3.6/1.8 A Full Load, 1 hp, 1140 rpm, 3 ph Phase, Open Drip-Proof Motor Enclosure, 56YZ Frame, 1/2 in Dia x 5 in L Shaft, Counter-Clockwise Rotation, Ball Bearing, Belly Band Mounting, B Insulation Class, 60 deg C, 10.9 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6.81 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandDuro Dyne®
Amperage Rating3.6/1.8 A Full Load
Bearing TypeBall
Dimensions10.9 " L
Frame Size56YZ
HP Rating1
IndustryHVAC
Insulation ClassB
Motor Enclosure TypeOpen Drip-Proof
Mounting TypeBelly Band
Phase3
Rotation TypeCounter-Clockwise
Shaft Size1/2 " Dia x 5 " L
Speed Rating1140
Temperature Rating60
Voltage Rating200 to 230/460
Features & Benefits
- Automatic thermal overload protection Dual voltage Shaftup mounting Flat and keyway on shaft
US Motors® 8058 Condenser Fan Motor, 200 to 230/460 V, 3.6/1.8 A Full Load, 1 hp, 1140 rpm Speed, 3 ph -Phase
BrandDuro Dyne®
MFG #8058
Keller #1215709
