ADA Compliant|ASME A112.18.1|CSA B125.1|ICC/ANSI A117.1

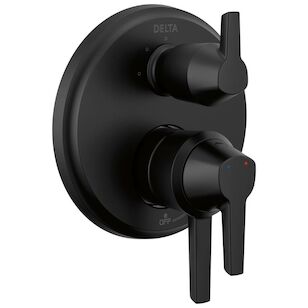

• Delta MultiChoice® Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve Top handle controls diverter functions Bottom handle controls on/off and adjusts volume, while the dial controls temperature 3-position diverter 2 individual and 1 shared position Monitor® 17 Series dual-function pressure balance cartridge Monitor® pressure balance valve keeps water temperature within a safe +/-3.6 deg F (+/-1.7 deg C), helping to protect you from sudden changes in hot or cold water pressure Trim kit only, must order MultiChoice® Universal integrated diverter rough separately to complete the unit Rough-in valve body (R22000 series) sold separately Standard installation allows up to 1-1/8 inch finished wall thickness Thick wall installation kit can be ordered separately to allow for up to 2-1/8 inch finished wall thickness

With a design inspired by the shape of sailboats, the Galeon™ Bath Collection brings a chiseled, contemporary look into the bath. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. By integrating separate controls on one trim with the MultiChoice® Integrated Shower Diverter, we've streamlined installation and your shower style. With separate volume and temperature control on this model, simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
