NIBCO PC-FP-600AS-LF-3/4 LF BL VLV
NIBCO PC-FP-600AS-LF-3/4 LF BL VLV

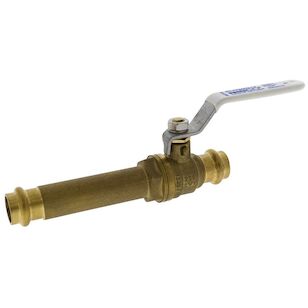

NIBCO® Ball Valve, PC-FP600A-S-LF Series, 3/4 in Nominal, Press x Press Slip Connection, Full Port, 250 psi, Air, Water Media, 6.74 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, 3/4 in Opening, DZR Copper Alloy Body, PTFE Seat, Brass Stem, PTFE Seal, PTFE Packing, Steel Handle, Brass Ball, EPDM Softgoods, Lead-Free, 250 deg F, 9.12 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$163.40 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialDZR Copper Alloy
Connection TypePress x Press Slip
Dimensions9.12 " L
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length6.74
Lead-FreeYes
MediaAir, Water
Nominal Size3/4
Opening Size3/4
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seal MaterialPTFE
Seat MaterialPTFE
SeriesPC-FP600A-S-LF Series
Softgoods MaterialEPDM
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center2.11
Shipping Dimensions (L x W x H)9.84" x 6.69" x 2.95"
Additional Information
ASME B16.51|cUPC Certified|IAPMO/ANSI Z1157/IGC 157|MSS SP-110/145|NSF/ANSI/CAN 61/372
Features & Benefits
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure Blowout-proof stem Reinforced PTFE seat rings Press leak-detection feature Dezincification resistant
Documents
Marketing Information
The NIBCO® Press System Slip ball valve body is manufactured from lead free* Brass alloy and is dezincification resistant (DZR). The Slip ball valve is designed with press-to-connect end connections with a slip side, and an inboard bead with EPDM O-ring for quick and easy copper to copper joinery. Ideally to be used to add a valve to an existing copper tube or replace a leaky valve. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.
NIBCO PC-FP-600AS-LF-3/4 LF BL VLV
BrandNIBCO®
MFG #NF99SX8
Keller #1217987
My Part ##
Last Ordered#
$163.40 / ea
