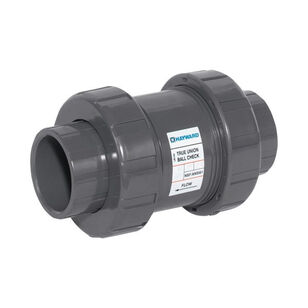

HAYWARD® TC1400SE True Union Ball Check Valve, 4 in, Socket, PVC
HAYWARD® TC1400SE True Union Ball Check Valve, 4 in, Socket, PVC
HAYWARD® True Union Ball Check Valve, TC Series, 4 in Nominal, Socket Connection, 150 psi, 70 deg F, 12.94 in Inlet to Outlet Length, PVC Body, EPDM Seal, 12.94 in L x 8.56 in H, Additional Information: 400 Cv Coefficient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,459.90 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHAYWARD®
Additional Information400 Cv Coefficient
Body MaterialPVC
Connection TypeSocket
Dimensions12.94 " L x 8.56 " H
IndustryLeisure
Inlet to Outlet Length12.94
Nominal Size4
Pressure Rating150
Seal MaterialEPDM
SeriesTC Series
Temperature Rating70
Additional Information
ASTM D1784/D1784/D3222 Type 1/D4101|NSF/ANSI 61/372
Features & Benefits
- Available in PVC, CPVC, PP, and PVDF For Horizontal or Vertical Installation 1/2" to 6" are Sure Block Design Square Cut Seat for Positive Sealing Seats with Minimum Back Pressure 1/4" and 3/8" are Trim Check Design
Documents
Marketing Information
The Hayward TC Series True Union Ball Check Valves offer versatile and reliable backflow prevention for critical flow control applications. Available in PVC (1/4" - 6"), CPVC (1/2" - 6"), and PP (1/2" - 2") , These valves can be installed horizontally or vertically. Featuring a square cut seat for positive sealing and seating with minimum back pressure, the larger sizes (1/2" to 6") utilize a Sure Block design, while smaller sizes (1/4" and 3/8") feature a Trim Check design. With pressure ratings up to 235 PSI at 70 deg F (16 Bar at 21 deg C) non-shock depending on material and size, and options for Socket, Threaded, or Flanged end connections, the TC Series ensures efficient and secure operation in diverse industrial systems. Foot valve screens are also available as an added option.
HAYWARD® TC1400SE True Union Ball Check Valve, 4 in, Socket, PVC
BrandHAYWARD®
MFG #TC1400SE
Keller #1218514
My Part ##
Last Ordered#
$1,459.90 / ea
