ZILMET ZTTA-180 ASME EXP TANK
ZILMET ZTTA-180 ASME EXP TANK

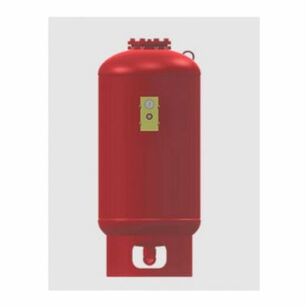

Zilmet® Thermal Expansion Tank With Fixed Diaphragm, ZTTA Series, 80 gal Capacity, 1-1/2 in Connection, NPT Connection, 53 gal Acceptance Factor, Butyl Rubber Diaphragm, Carbon Steel, Finish: Primer Painted, 150 psig, 240 deg F, 24 in Dia x 50 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,392.96 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZilmet®
Acceptance Factor53 gal
Capacity80 gal
Connection Size1-1/2"
Connection TypeNPT
Diaphragm MaterialButyl Rubber
Dimensions24" Dia x 50" H
FinishPrimer Painted
MaterialCarbon Steel
Pressure Rating150 psig
SeriesZTTA Series
Temperature Rating240 deg F
Warranty1 Year
Shipping Dimensions (L x W x H)24" x 50" x 24"
Features & Benefits
- Integrated pressure gauge
- Bladder/diaphragm integrity monitor
- Easy access air vent
- Protective guard
- Pre-charge of 40 psig
Marketing Information
Zilmet® USA ZTTA series are ASME fixed diaphragm-type pre-charged thermal expansion tanks for commercial and industrial potable hot water applications. They are designed to be installed between a backflow preventer and a hot water heater to accept the expanded volume of hot water keeping the system pressure below the relief valve setting. Products comply with NSF/ANSI standard 61.
ZILMET ZTTA-180 ASME EXP TANK
BrandZilmet®
MFG #ZTTA-180
Keller #1218865
My Part ##
Last Ordered#
$6,392.96 / ea
